BMW R850 1100GS (2000) [180/464] Removing and installing fuel tank
![BMW R1100RS (2000) [180/464] Removing and installing fuel tank](/views2/1121034/page180/bgb4.png)
16.7

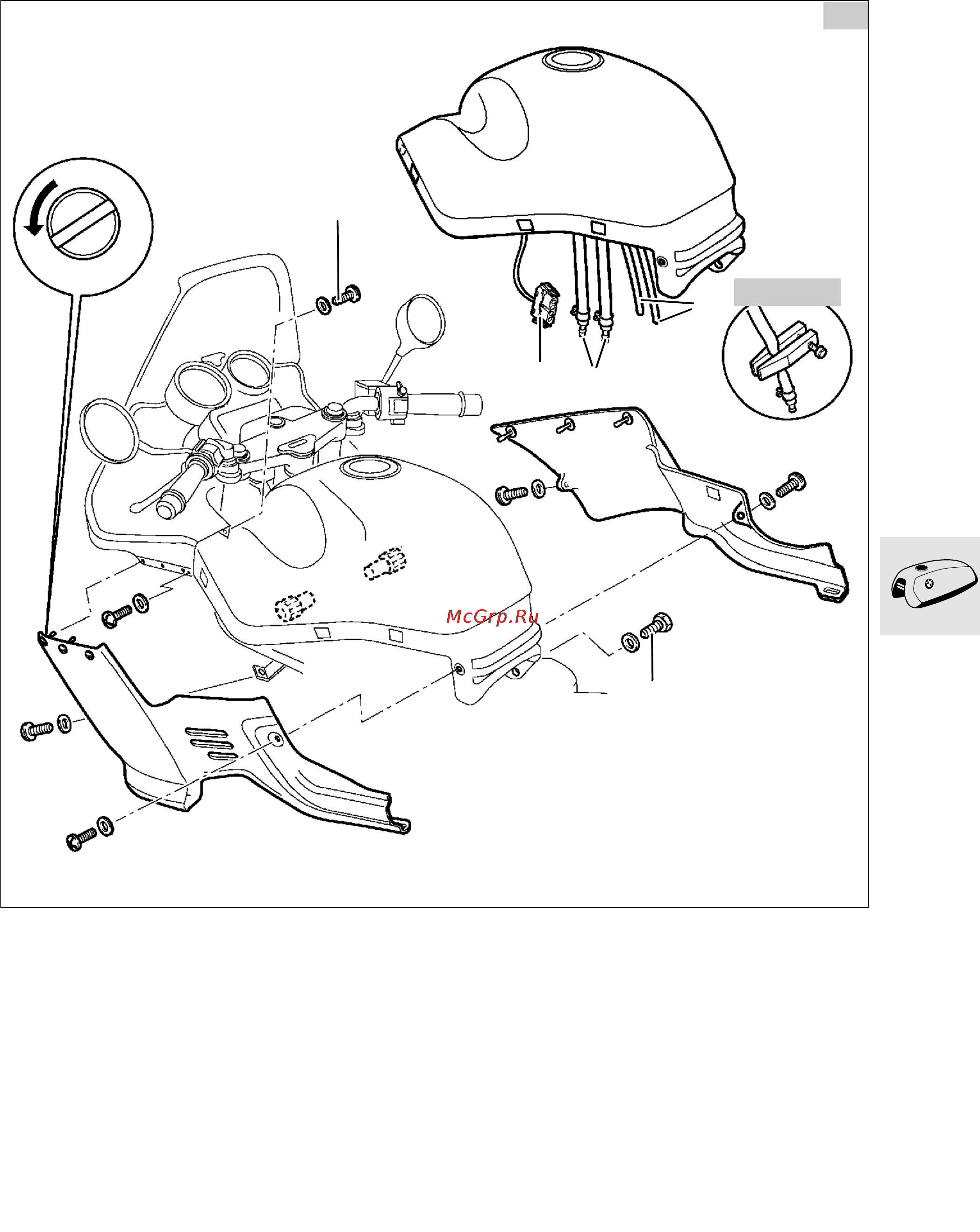

Removing and installing fuel tank
•
Remove dualseat.
•
[RS/GS/RT] Remove side sections of fairing.
•
[RS] Detach inner cockpit panel (1) at fuel tank.
•
[R] Remove fuel tank cover.
•
Remove fuel tank retaining screw (2).
•
Seal, loosen and pull off fuel feed and return line
(3) with hose clip, BMW No. 13 3 010.
•
Remove vent pipes (4).
•
Separate plug connector (5) for fuel pump.
•
Lift off fuel tank.
•
Install in the reverse order of work.
X Tightening torque:
Fuel tank to rear frame ................................. 22 Nm
RS
13 3 010
1
2
5
3
4
RS160010
