46.13
[RT] Removing and installing upper
section of fairing
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove dualseat.
•
Remove side mirrors.
•
Remove side trim panels.
•
Remove windshield.
•
Remove inner cover for trim.
•
Pull off plug for headlight.
•
Detach the aerial.
•
Remove upper section of fairing.
•
Install in the reverse order of work.
L Note:

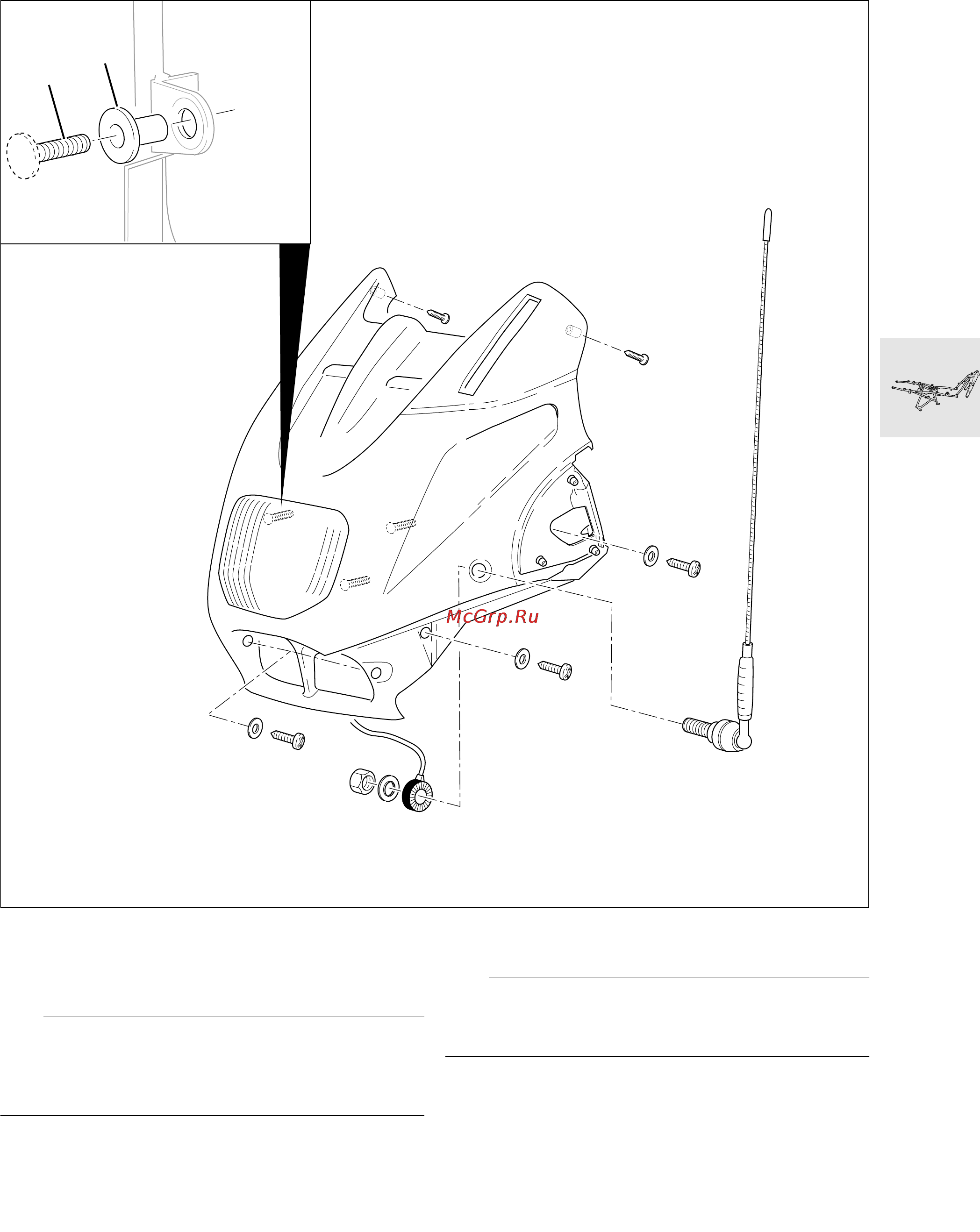

Before installing upper section of fairing, push metal
bushings (1) on to threaded pins (2).
2x
2
1
RT460310
