46.50

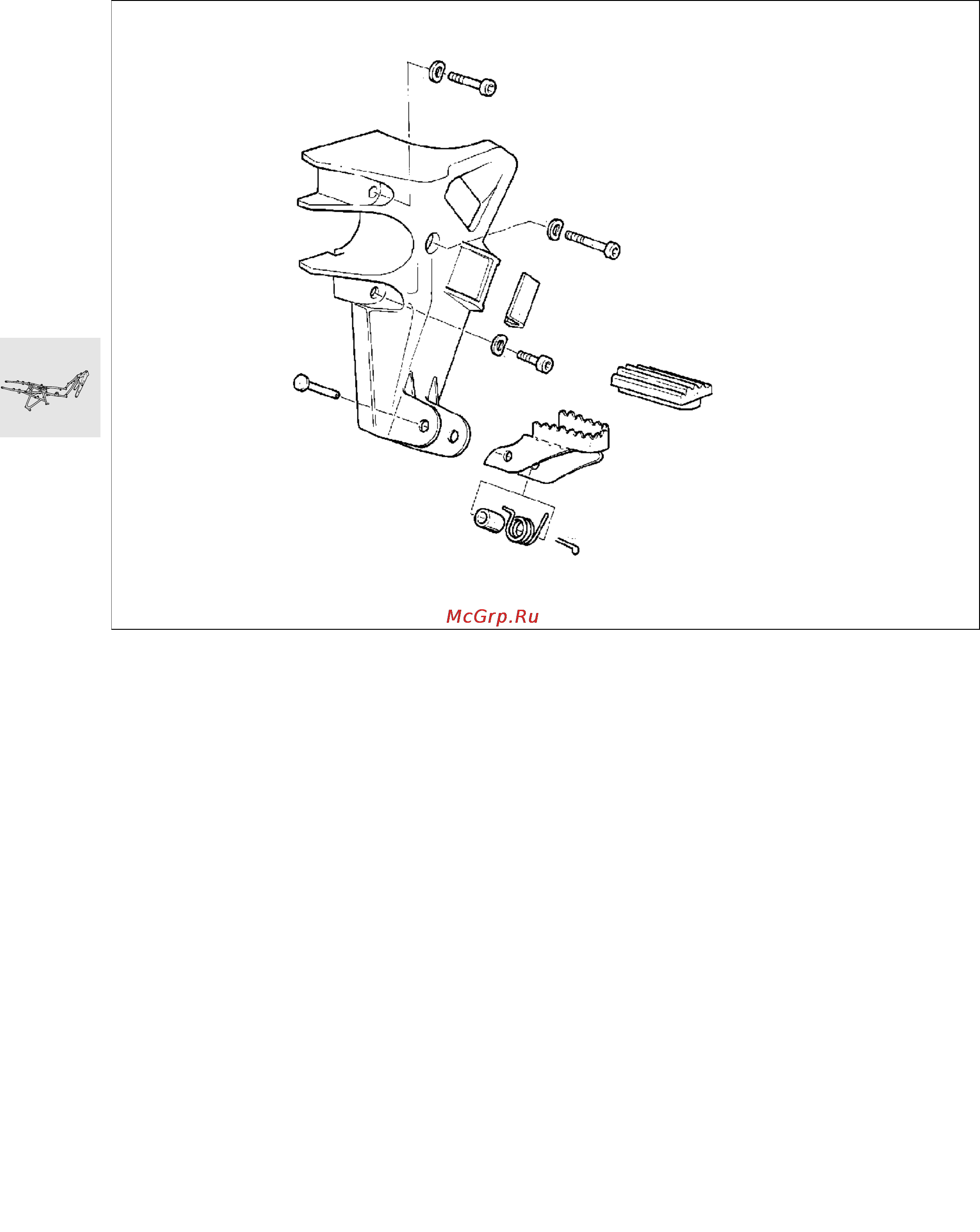

[GS] Removing and installing front
footrest plate
X Tightening torque:
Hydraulic spring adjuster
to footrest plate............................................ 22 Nm
GS460191
