![BMW R850 1100GS (2000) [221/464] Disassembling assembling input shaft clean bearing](/img/pdf.png)
BMW R850 1100GS (2000) [221/464] Disassembling assembling input shaft clean bearing
![BMW R850 1100R (2000) [221/464] Disassembling assembling input shaft clean bearing](/views2/1121034/page221/bgdd.png)
23.23

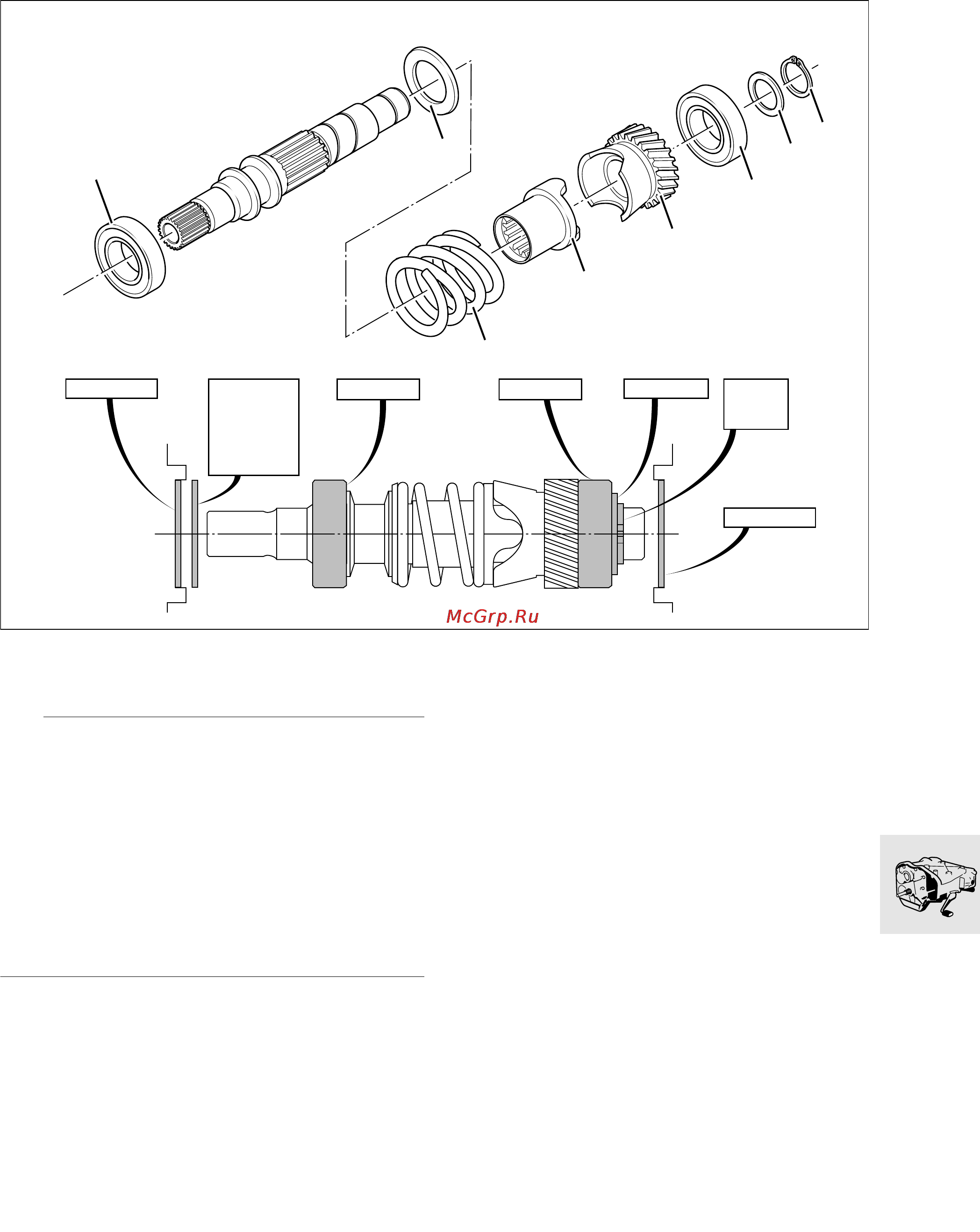

Disassembling/assembling input shaft
(Clean Bearing)
L. Note:
The 42x52x1.25 (1.65x2.05x0.049) washers are
installed only for the “interim solution”.
Calculate distances DAn and GAn.
If DAn = 41.28
+ 0.08
(1.625
+ 0.00315
)
and GAn = 100.23
+ 0.08
(3.946
+ 0.00315)
)
install a 42x52x1.25 (1.65x2.05x0.049) washer for
each.
If DAn = 39.5
+ 0.1
(1.555
+ 0.00393
)
and GAn = 99.0
+ 0.1
(3.898
+ 0.00393
)
do not install 42x52x1.25 (1.65x2.05x0.049)
washers.
42 x 52 x 1,25
42 x 52 x 1,25
20 x 28 x 0,5
42 x 52 x 0,30
42 x 52 x 0,35
42 x 52 x 0,40
42 x 52 x 0,45
42 x 52 x 0,50
42 x 52 x 0,55
20 x 1,75
20 x 1,85
20 x 1,95
25 x 52 x 15 20 x 52 x 15
7
5
4
1
3
2
6
8
RT230151
