BMW R850 1100GS (2000) [161/464] Removing and installing starter motor
![BMW R1100RS (2000) [161/464] Removing and installing starter motor](/views2/1121034/page161/bga1.png)
12.12
Removing and installing starter
motor
•
Remove dualseat.
•
[RS/RT] Remove left side section of fairing.
e Caution:
Disconnect ground (earth) lead from battery. Insu-
late ground (earth) lead.
•

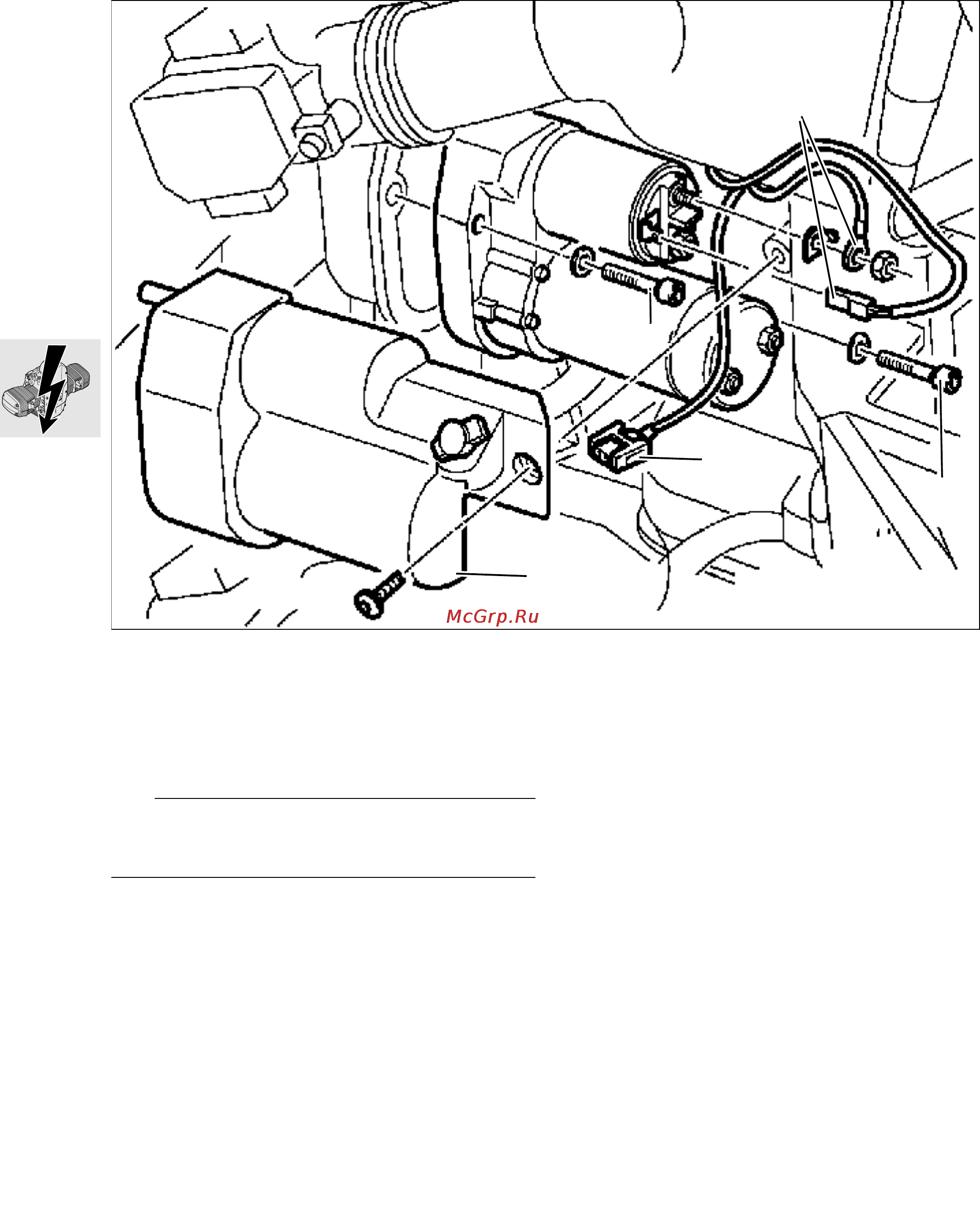

[RS/GS/R] Remove cover (1) for starter motor
and pull off wire (2) for power socket.
•
Detach connecting lead (3).
•
Take out retaining screws (4) and remove the
starter motor.
•
Install in the reverse order of work.
X Tightening torque:
Starter motor to engine ................................ 20 Nm
Starter motor cover to gearbox housing......... 7 Nm
Positive lead to starter motor........................ 10 Nm
1
2
4
4
3
RS120140
