32.9

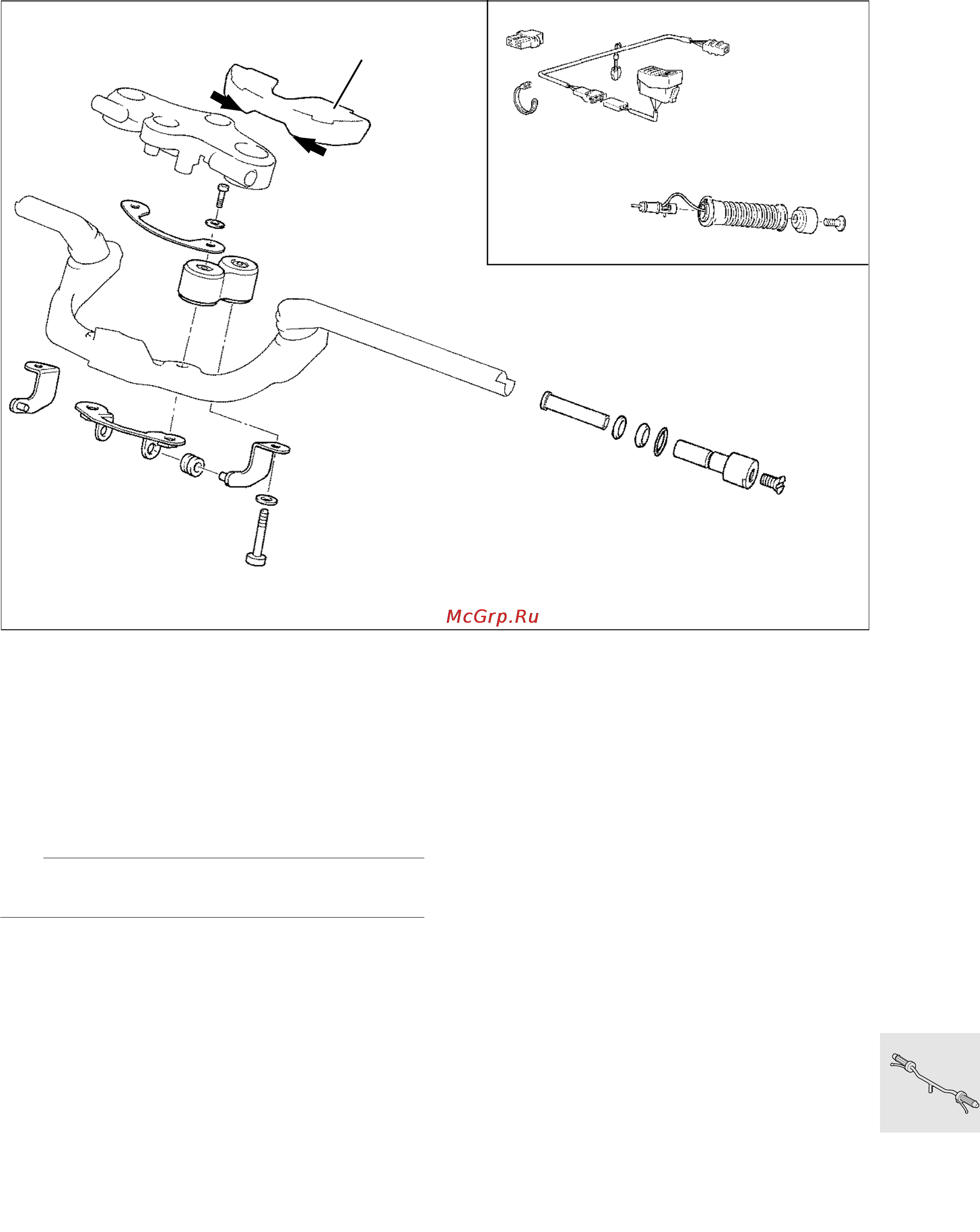

[RS] Removing and installing
handlebar
•
Remove left/right handlebar fittings.
•
Remove trim (1) from fork bridge (press hooks in
direction of arrow).
•
Remove handlebar.
•
Install in the reverse order of work.
e Caution:
Ensure that brake hoses are correctly located.
X Tightening torquet:
Handlebar at rubber mount ......................... 40 Nm
Rubber mount at fork bridge ........................ 40 Nm
Handlebar weight to fixed handlebar ............ 20 Nm
Handlebar weight to adjustable handlebar
(clean thread + Loctite 2701).......................... 7 Nm
1
RS320030
