BMW R850 1100GS (2000) [188/464] Removing and installing front exhaust pipes
![BMW K1100RT (2000) [188/464] Removing and installing front exhaust pipes](/views2/1121034/page188/bgbc.png)
18.4
Removing and installing front exhaust
pipes
•

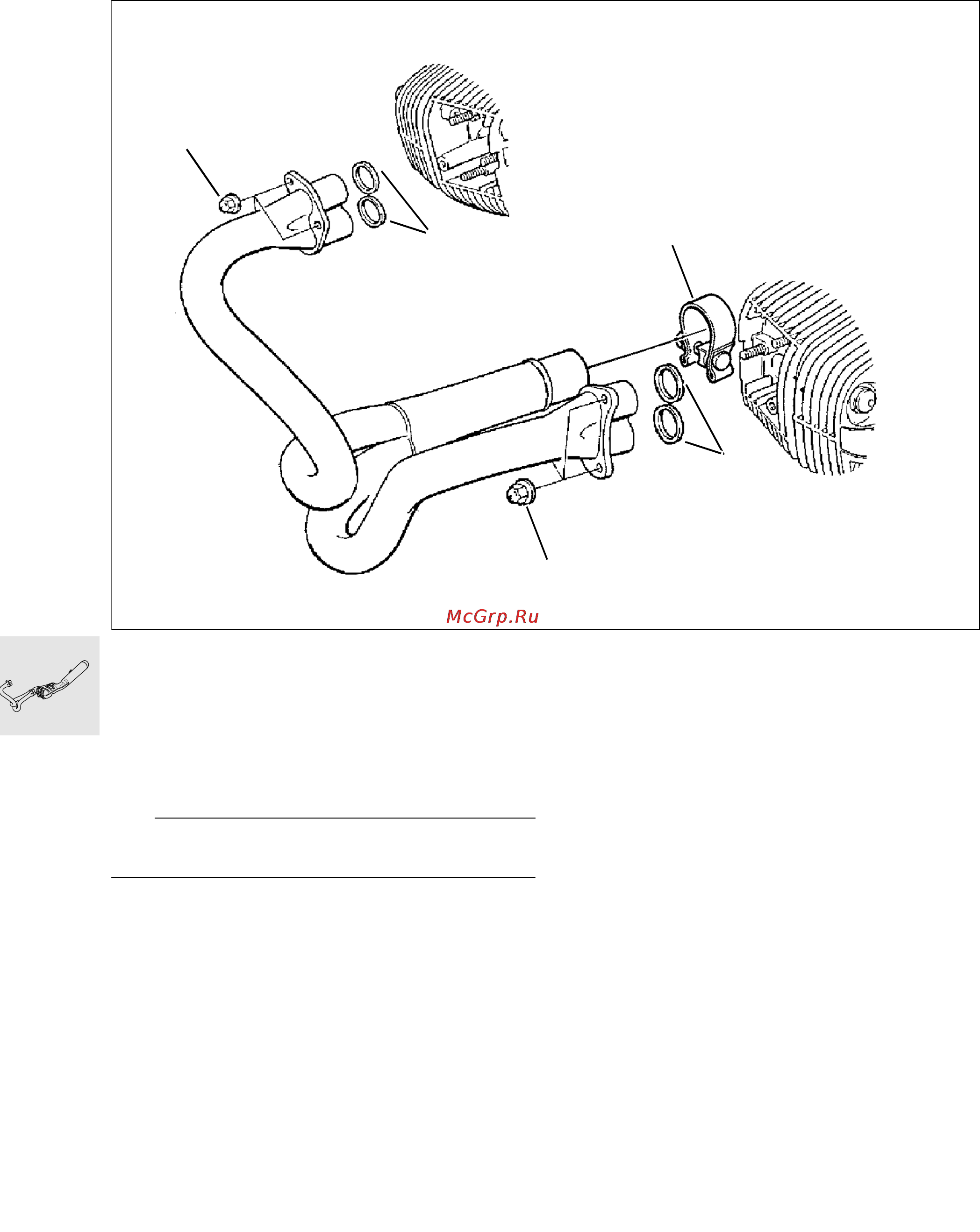

Loosen pipe clip (2).
•
Unscrew exhaust pipe mount (6).
•
Take off front exhaust pipes.
•
Install in the reverse order of work.
L Note:
When installing, use new seals (7).
X Tightening torque:
Front exhaust pipes
(with plate) at cylinder head.......................... 22 Nm
Front exhaust pipes
(with outer pipe) at cylinder head.................. 18 Nm
Clip at muffler
(coat clamping surface with Never Seez)...... 50 Nm
6
7
7
6
2
RS180030
