46.10

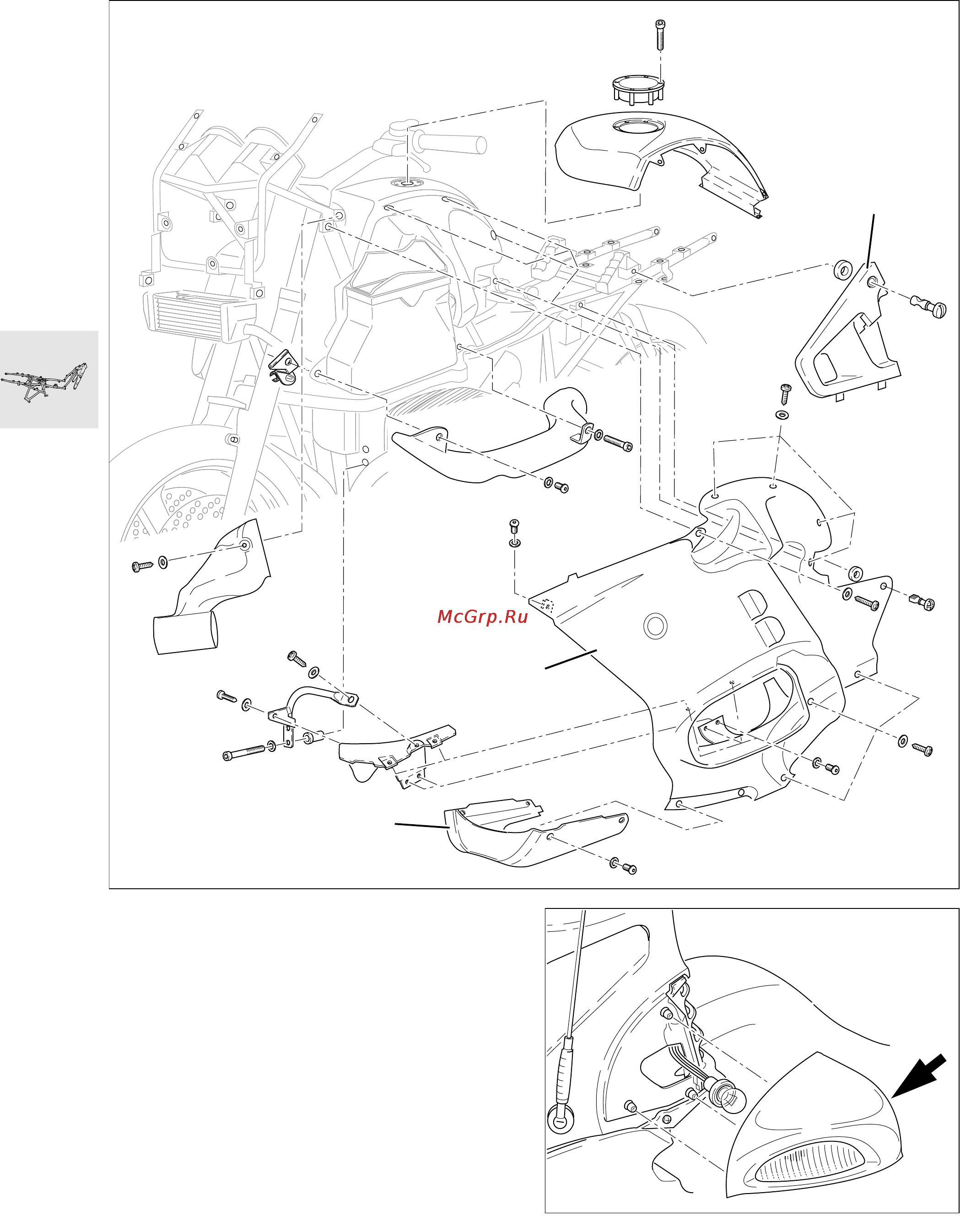

[RT] Removing and installing fairing
sections
•
Remove dualseat.
•
Take off small side sections of fairing (1).
•
Hold mirror with one hand. With the other hand,
strike the mirror housing lightly towards the mir-
ror surface (arrow). Take off the mirror.
•
Remove side sections of fairing (2) and
spoiler (3).
•
Install in the reverse order of work.
•
Offer the mirror at its three mounting points.
Strike the mirror housing lightly, first at the front,
then at the rear, to engage it
6x
2x
4x
4x
3x
4x
1
2
3
RT460270
RT460280
