11.79

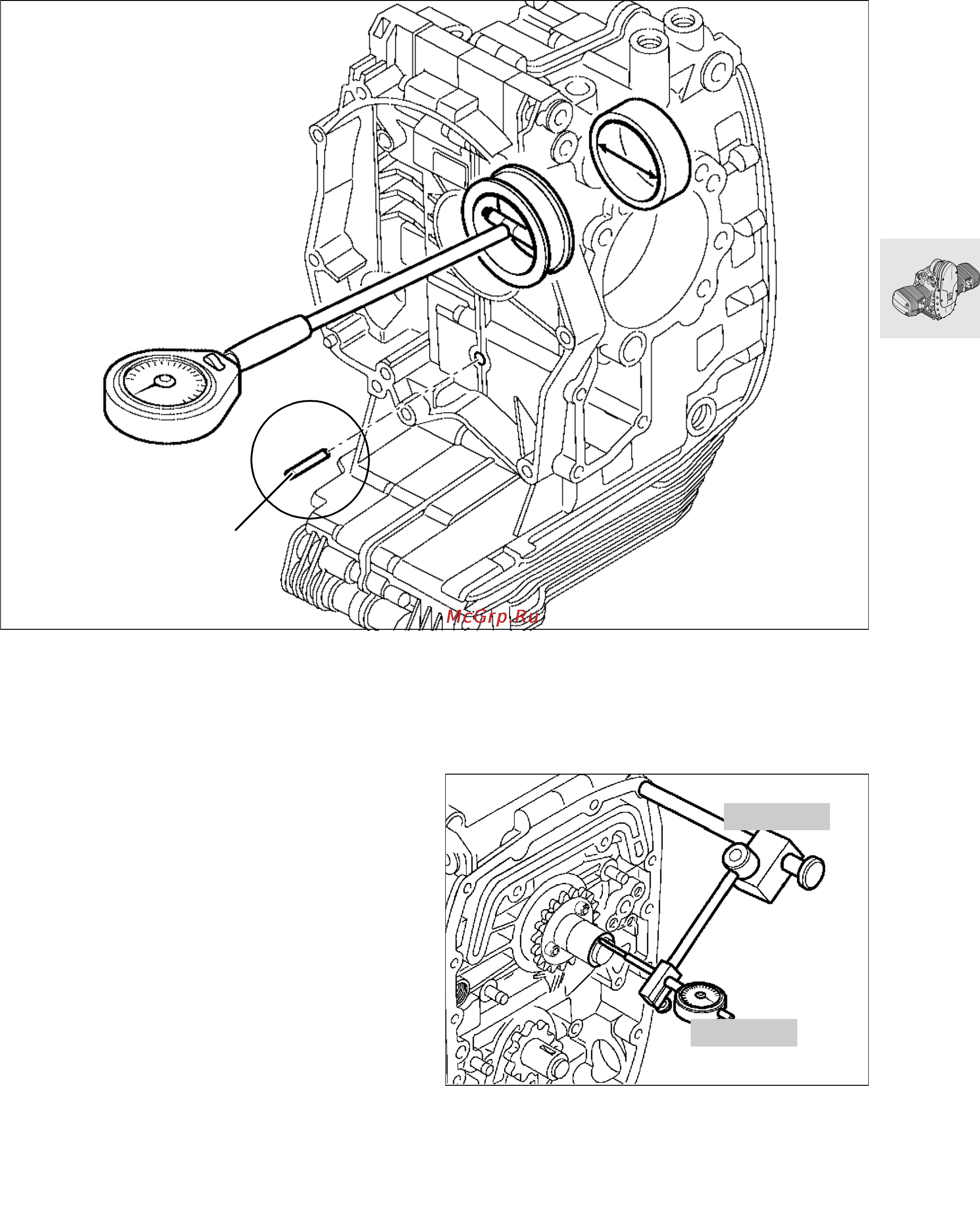

Install main bearings
•
Insert tensioner rail/slide rail pivot pin (1) for
centering purposes.
•
Tighten M8 and M10 housing screws..
Tightening torque/tightening sequence:
1. M10 screw (oiled)..................................... 45 Nm
2. M8 screw (oiled)....................................... 20 Nm
•
Measure main bearings front/back in the load
direction.
•
Enter measured values on record sheet and
determine main bearing play values.
a See Technical Data.
Measuring axial bearing play
•
Place crankshaft in engine block.
•
Insert tensioning rail/slide rail pivot pin (1) for
centering purposes.
•
Tighten housing screws.
•
Screw measuring device BMW No. 00 2 500,
with dial gauge, BMW No. 00 2 510, in the
tapped hole for the alternator mount cover.
•
Move crankshaft forwards and backwards, and
read off play at dial gauge.
a See Technical Data.
1
RS110320
00 2 500
00 2 510
RS110910
