![BMW R850 1100GS (2000) [402/464] Removing and installing lock barrel](/img/pdf.png)
BMW R850 1100GS (2000) [402/464] Removing and installing lock barrel
![BMW R850 1100GS (2000) [402/464] Removing and installing lock barrel](/views2/1121034/page402/bg192.png)

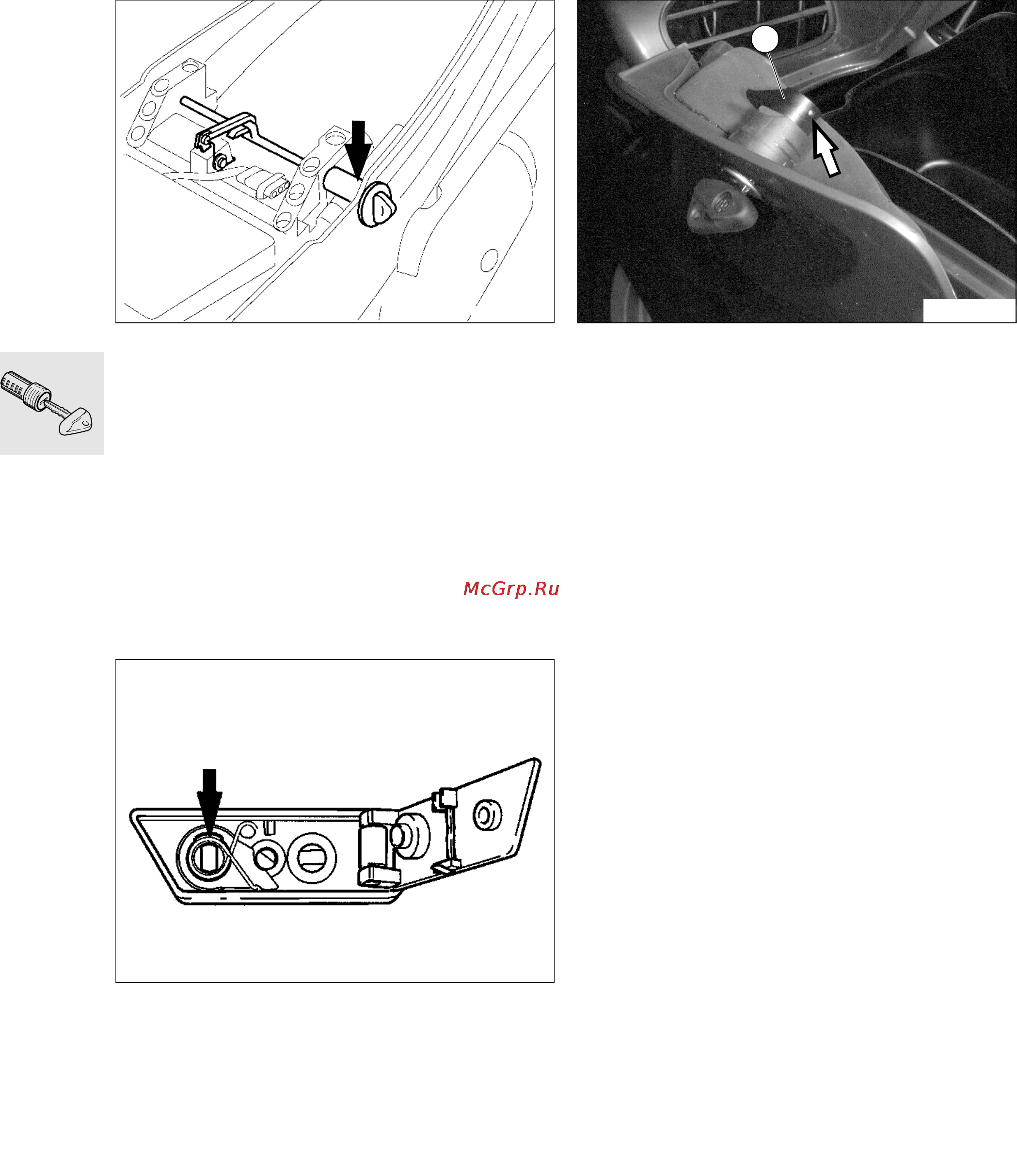

51.6
[R] Removing and installing
dualseat lock
Removing and installing lock barrel
•
Press down retainer (arrow) with a piece of wire
or similar.
•
Pull out lock barrel with key.
•
Lubricate the new lock barrel with
Shell Retinax A.
•
Insert lock barrel until retainer engages.
[GS] Removing and installing helmet
lock
•
Open retaining bracket.
•
Remove helmet lock.
•
Use screwdriver to lever out inside cover.
•
Remove spring and retaining hook.
•
Press retaining lug on lock barrel down into
housing and remove lock barrel with key.
•
Lubricate the new lock barrel with
Shell Retinax A.
•
Insert lock barrel until retainer engages.
•
Install in the reverse order of work.
[RT] Removing and installing stor-
age compartment lock
•
Press in safety peg (arrow) with a piece of wire or
similar.
•
Take off the locking section (1).
•
Pull out lock barrel with key.
•
Lubricate the new lock barrel with
Shell Retinax A.
•
Press the retaining lug into the lock barrel and in-
sert until the detent engages.
•
Press the locking section back on and press in
the safety peg.
RS510090
GS510080
1
RT510100
