46.30

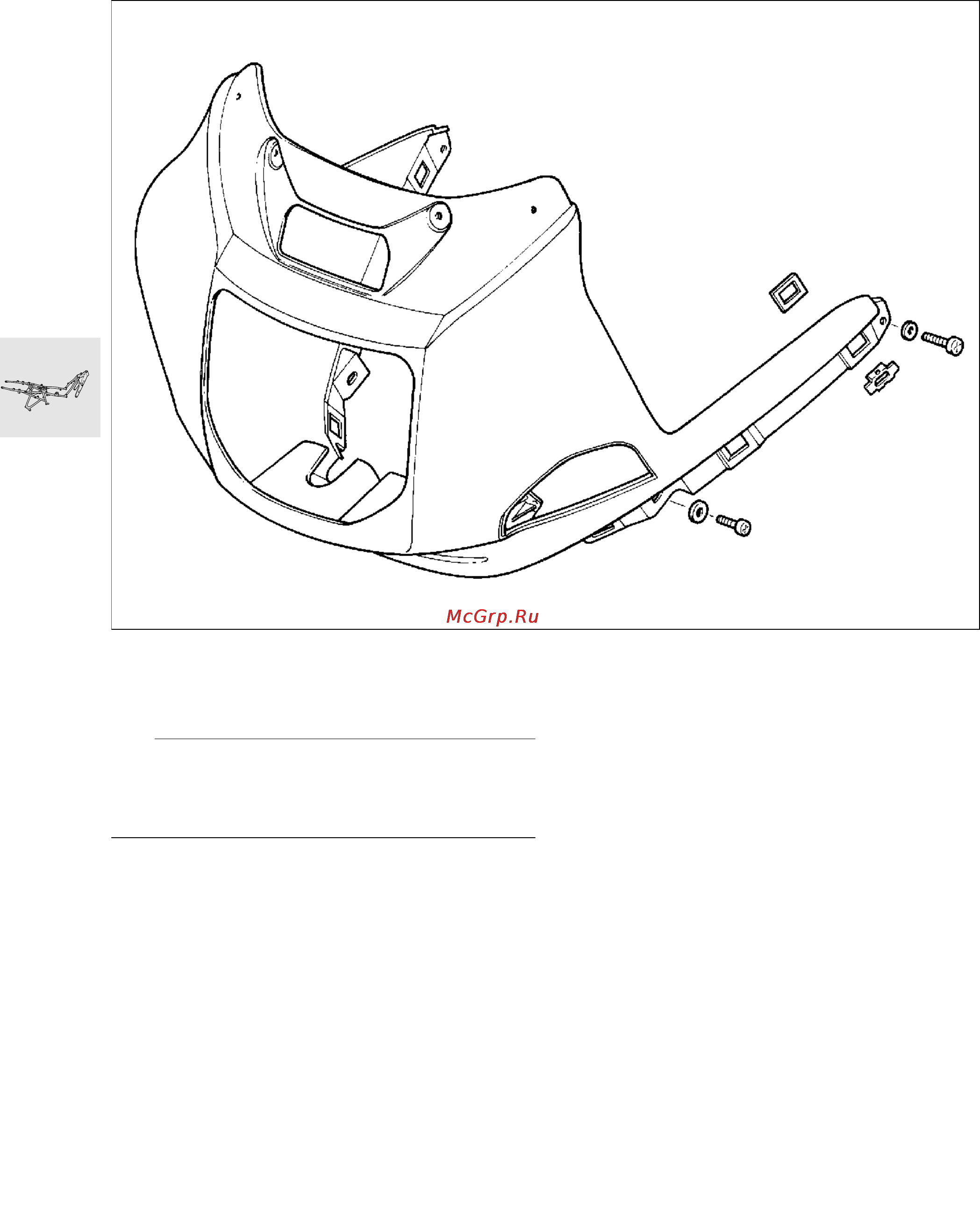

[RS] Removing and installing top
section of fairing
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove windshield.
•
Remove side sections of fairing.
•
Remove inner fairing panel.
•
Unscrew and remove windshield adjusting shaft.
•
Detach instrument cluster.
•
Detach plug connections for flashing turn
indicators.
•
Detach top section of fairing.
•
Remove headlight.
•
Remove bracket for windshield.
•
Remove fairing.
•
Install in the reverse order of work.
RS460110
