![BMW R850 1100GS (2000) [282/464] Assembling input bevel pinion](/img/pdf.png)
BMW R850 1100GS (2000) [282/464] Assembling input bevel pinion
![BMW R850 1100R (2000) [282/464] Assembling input bevel pinion](/views2/1121034/page282/bg11a.png)
33.13

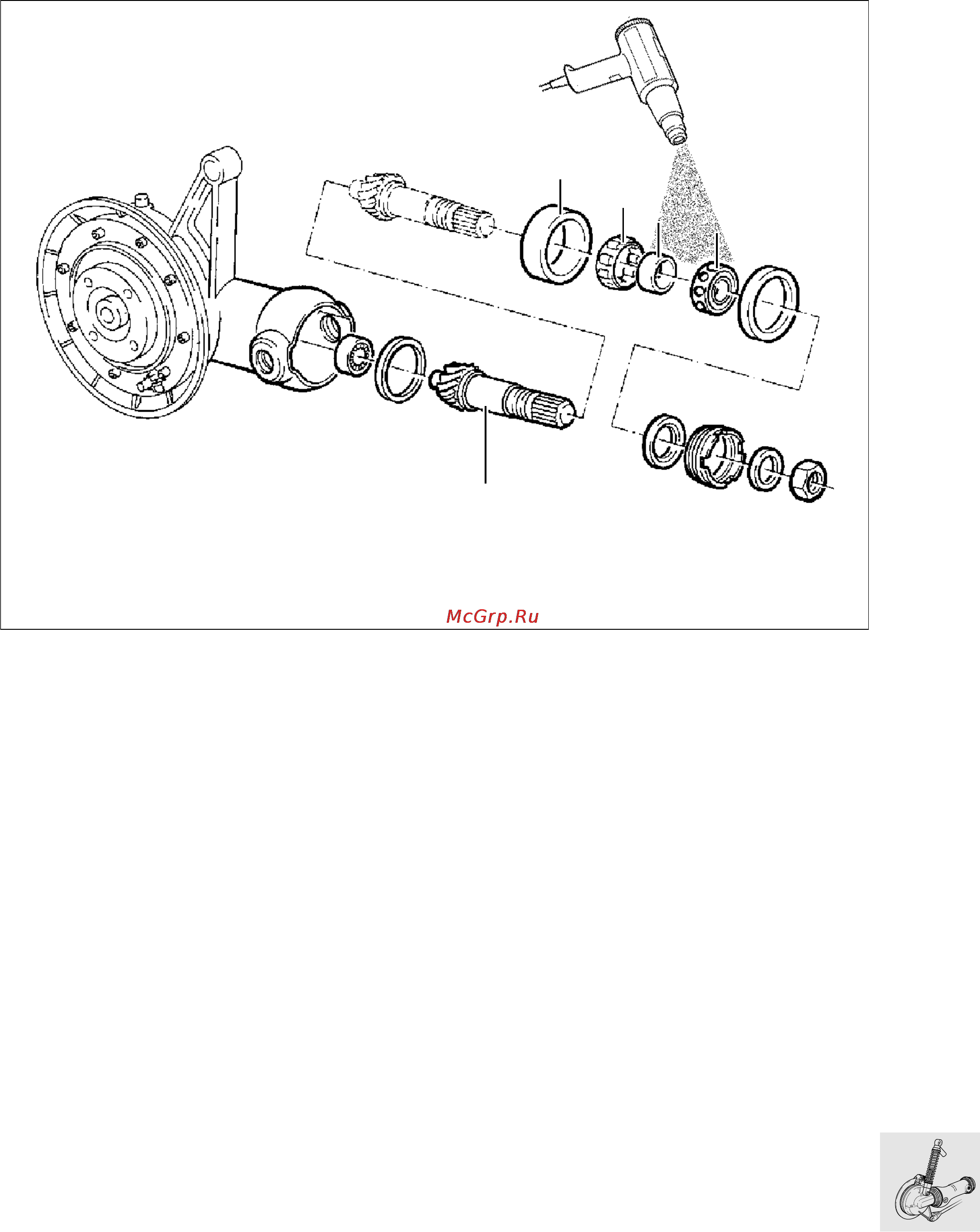

Assembling input bevel pinion
•
Heat the inner race (10) to 100 °C and push onto
input bevel pinion (6) as far as the stop.
•
Slide outer race (12) together with roller cage (11)
onto inner race (10).
•
Heat ball thrust bearing (9) to 100 °C and push
onto input bevel pinion (6) as far as the stop.
•
Allow input bevel pinion to cool down.
12
11
10
9
6
j
100
LT330071
