33.12

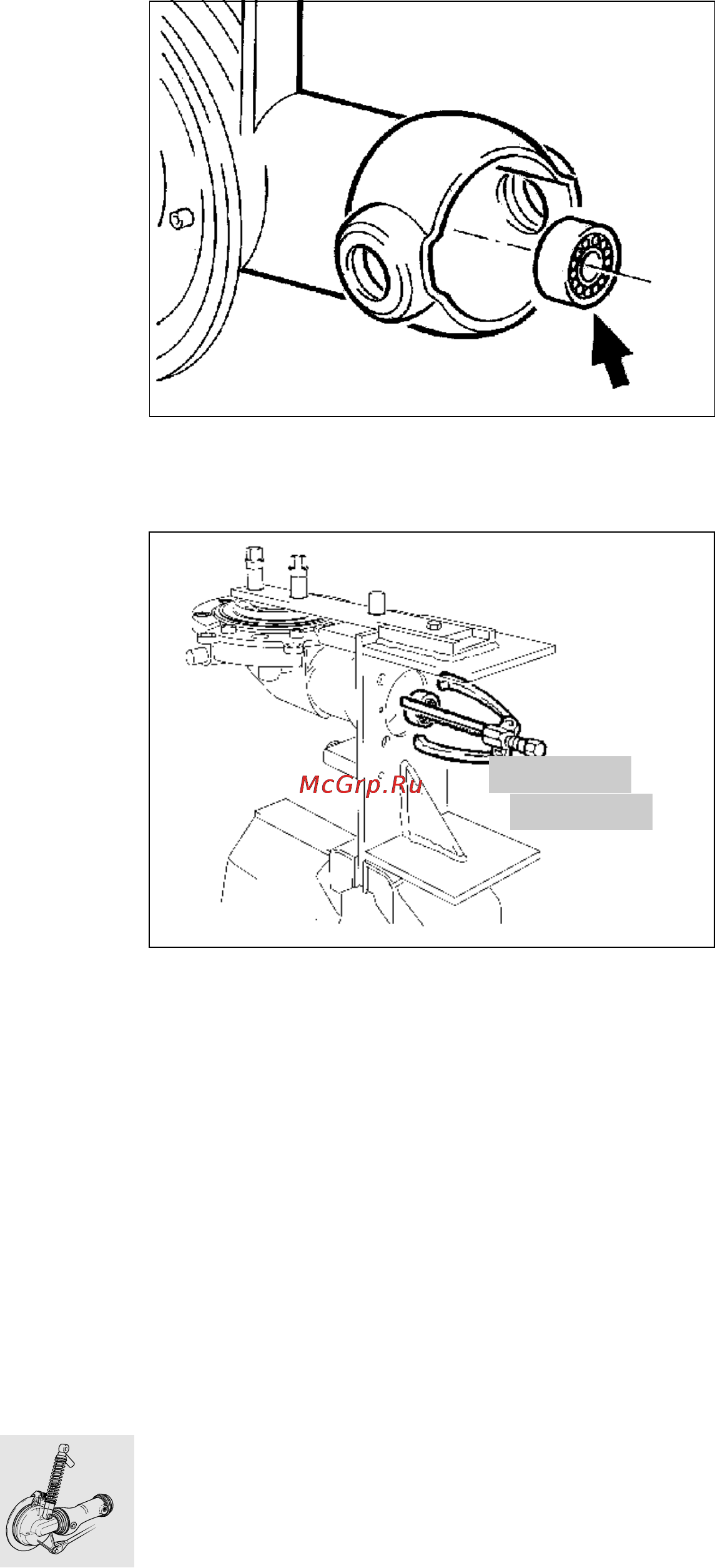

Removing needle roller bearing for input bevel
pinion
•
Split the needle roller bearing cage open.
•
Heat the housing to 130 °C..
•
Pull out the needle roller bearing outer race with
internal puller, BMW No. 00 8 573, and counter-
support, BMW No. 00 8 570.
Installing needle roller bearing for input bevel
pinion
•
Heat the needle roller bearing seat to 100 °C.
•
Press in needle roller bearing using drift or the in-
put bevel pinion.
LT330020
LT 33.006
00 8 570
00 8 573
RT330060
