34.26

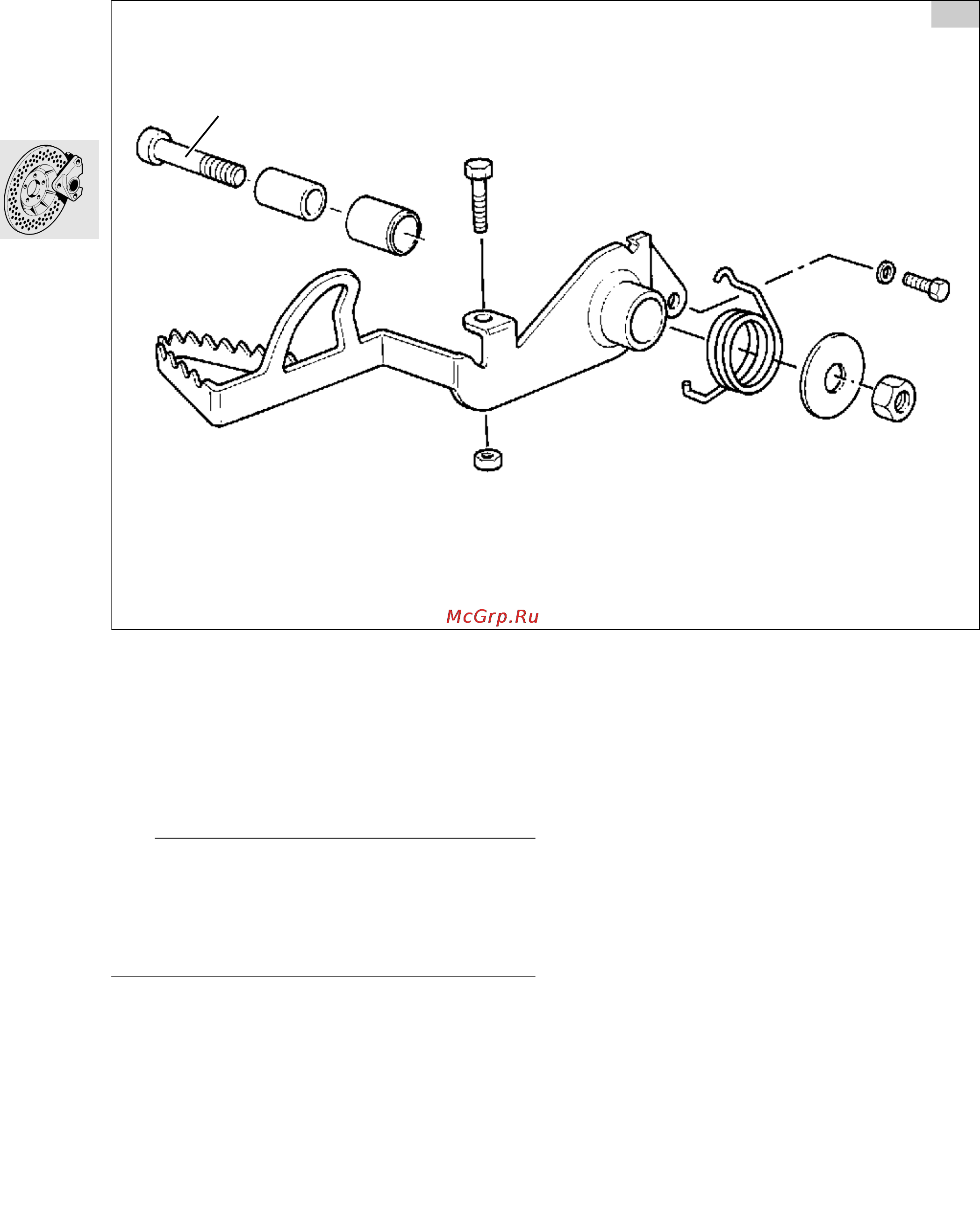

Removing and installing brake pedal
•
Release pin on brake linkage.
•
Remove brake pedal retaining pin (1).
•
Remove brake pedal with spiral spring.
•
Install in the reverse order of work.
•
Lubricate pivot bushing with Shell Retinax A.
e Caution:
Check/adjust piston rod relief clearance.
See removal and installation of brake master cylin-
der.
The brake light must come on as soon as the rear
brake begins to take effect.
X Tightening torque:
Brake pedal to footrest plate
(free from grease)........................................... 37 Nm
1
GS
RS340220
