00.25

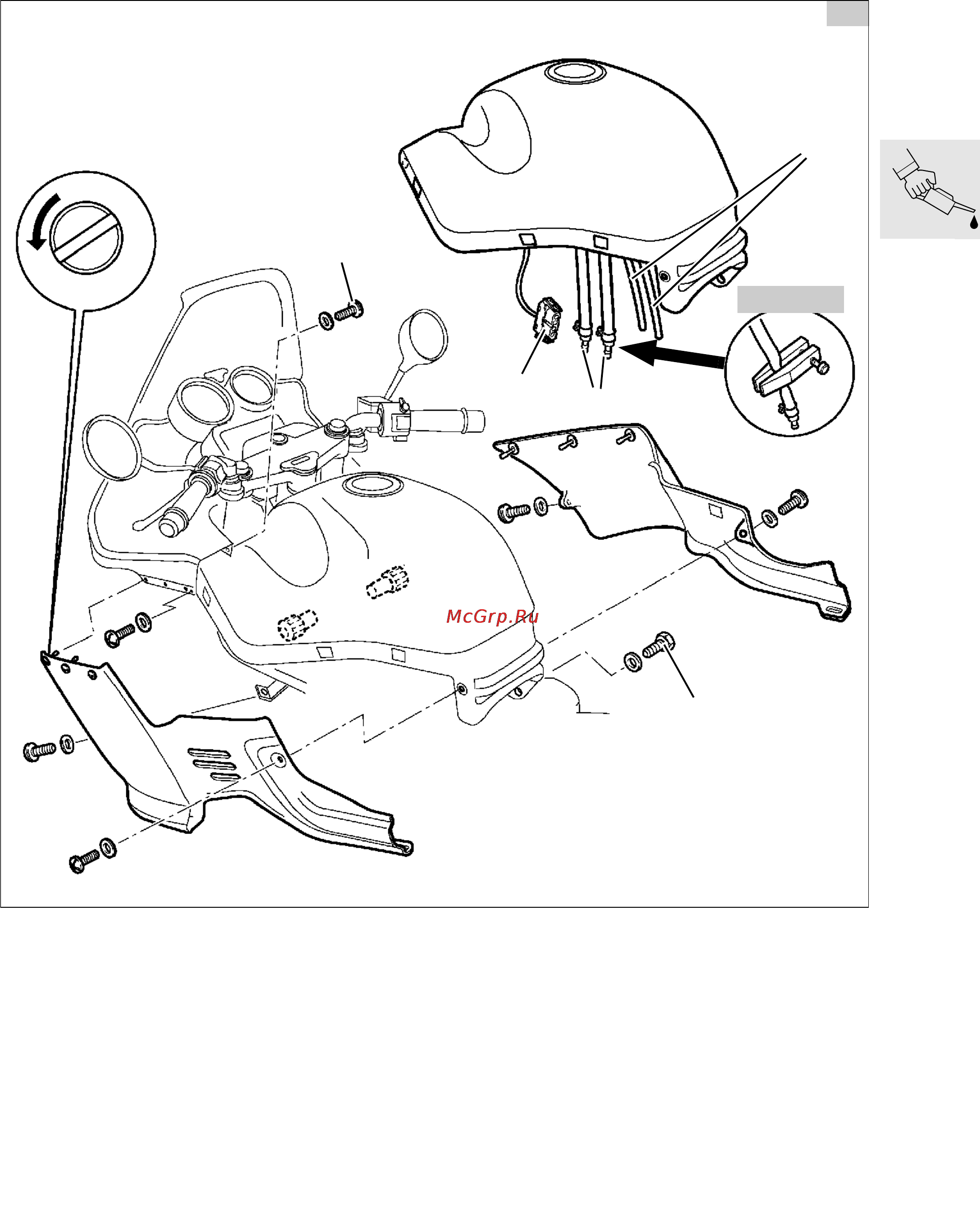

Renewing fuel filter
(Inspektion III)
•
Remove dualseat.
•
[RS/RT] Take off side sections of fairing.
•
[RS] Detach cockpit inner panel (1) at fuel tank.
•
[GS] Remove right side fairing.
•
[R] Remove fuel tank cover.
•
[RT] Detach storage compartment
•
Unfasten fuel tank mount (2)
•
Seal off fuel feed and return line (3) with hose clip,
BMW No. 13 3 010, loosen and pull off.
•
Remove vent pipes (4).
•
Remove fuel pump connector (5).
•
Lift off fuel tank.
RS
1
5
3
4
2
13 3 010
RS160010
