11.99
•

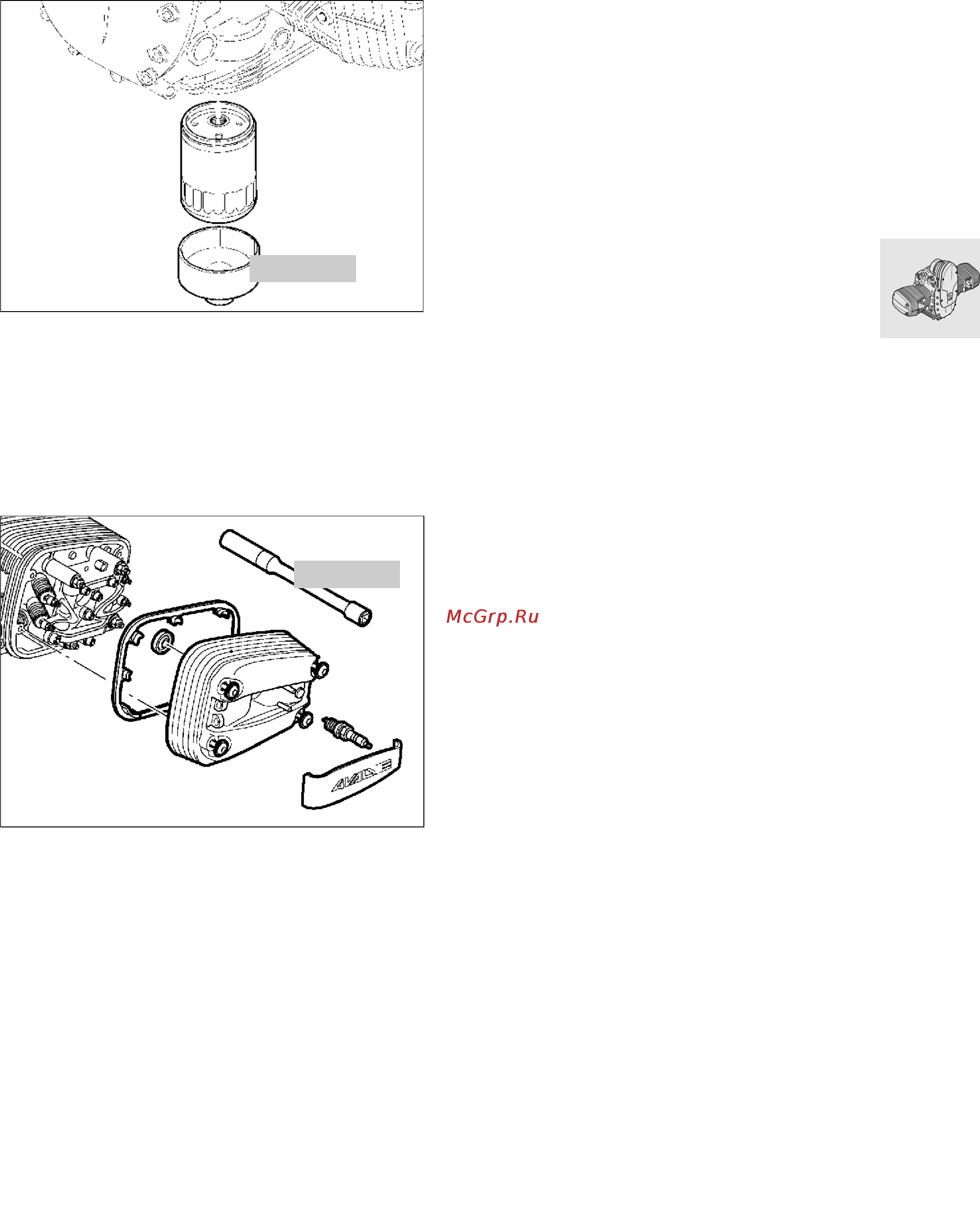

Install oil filter with oil filter wrench,
BMW No. 11 4 650.
•
Insert and tighten oil drain plug with a new seal.
X Tightening torque:
Oil filter (sealing face lightly oiled) ................ 11 Nm
Oil drain plug................................................ 32 Nm
•
Install spark plugs with spark plug wrench,
BMW No. 12 3 510.
X Tightening torque:
Spark plug.................................................... 20 Nm
Installing engin
•
Work in reverse order to that stated for removal.
11 4 650
RS110950
12 3 510
RS000010
