34.11
Assembling rear brake caliper
•
Coat new sealing rings (8) with brake fluid and in-
sert them into the left/right brake cylinders.
•
Coat both brake caliper pistons (7) with brake flu-
id and install them.
e Caution:
Do not tilt the brake pistons when assembling.
•
Insert the dust protection sleeve (6) at left and
right
•

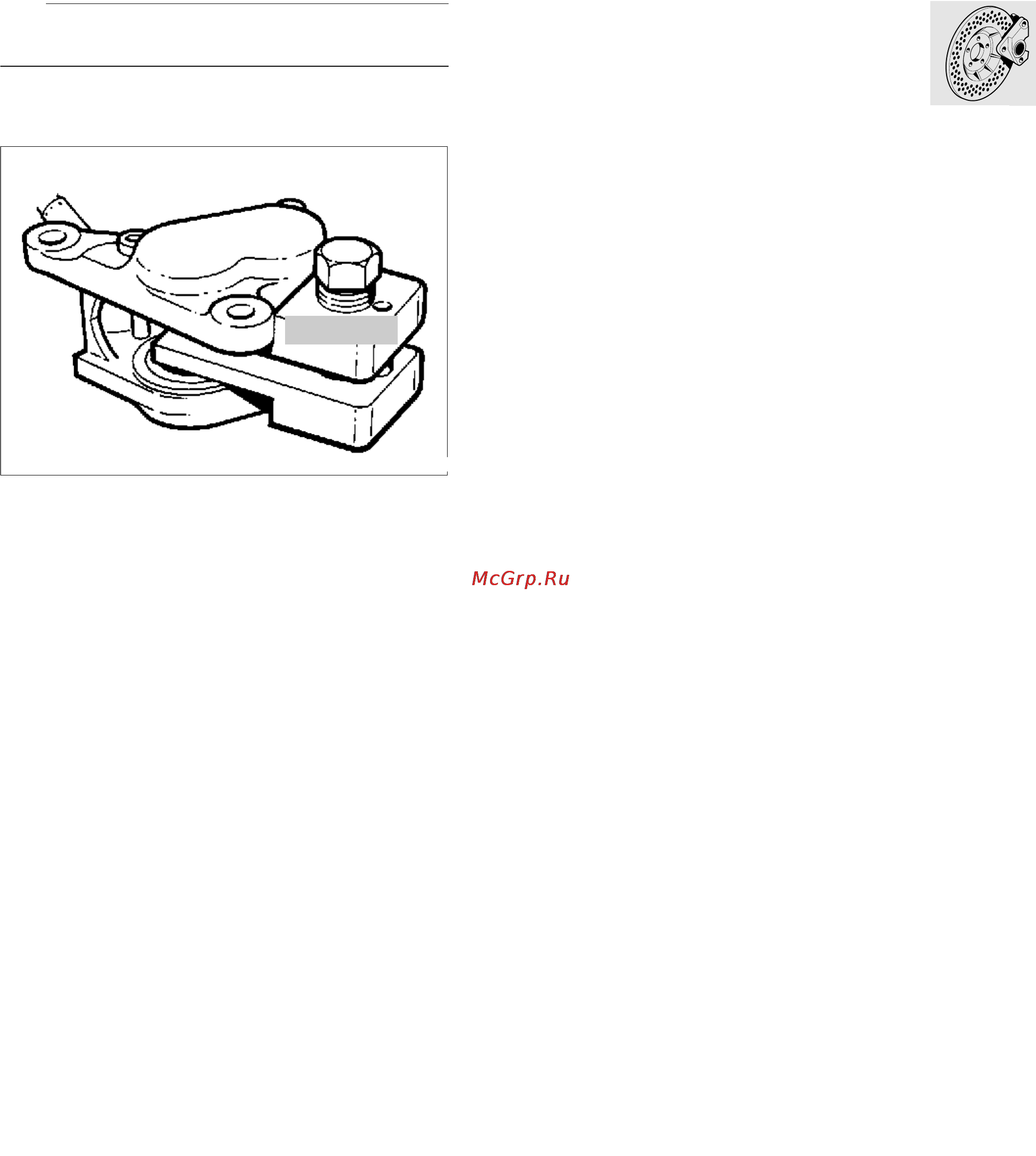

Before installing the new brake pads, press the
pistons back into the brake calipers with the re-
setting device, BMW No. 34 1 500.
34 1 500
RS340150
