21.10

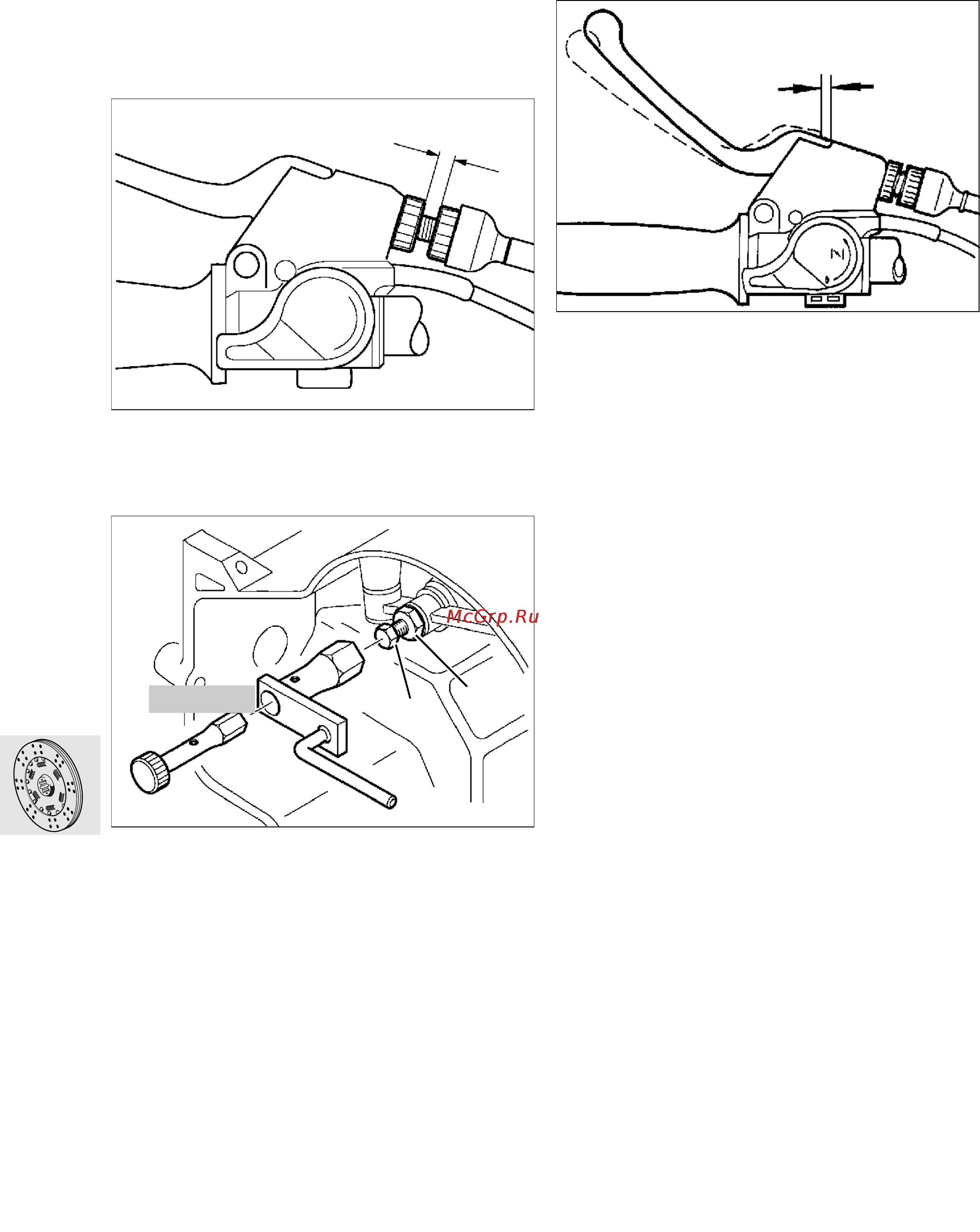

Adjusting clutch operating clear-
ance
•
Turn adjusting screw to obtain distance A.
Distance A:.................................. 12 mm (0.472 in)
•
[GS] If necessary, detach the hydraulic spring
adjusted with a 6 mm (0.24 in) Allen key,
BMW No. 31 5 600.
•
[RT] If necessary, detach the power socket
holder.
•
Using socket wrench, BMW No. 21 3 610,
loosen locknut (1) for adjusting screw (2) at
clutch release lever.
•
Set to distance B at the handlebar lever by turn-
ing adjusting screw (2) on the clutch release le-
ver.
Distance B: ................................... 7 mm (0.276 in)
X Tightening torque:
Locknut on adjusting screw ......................... 22 Nm
A
RS210020
21 3 610
2
1
RS210030
B
RS210040
