BMW R850 1100GS (2000) [229/464] Installing selector shaft
![BMW R850 1100GS (2000) [229/464] Installing selector shaft](/views2/1121034/page229/bge5.png)
23.31

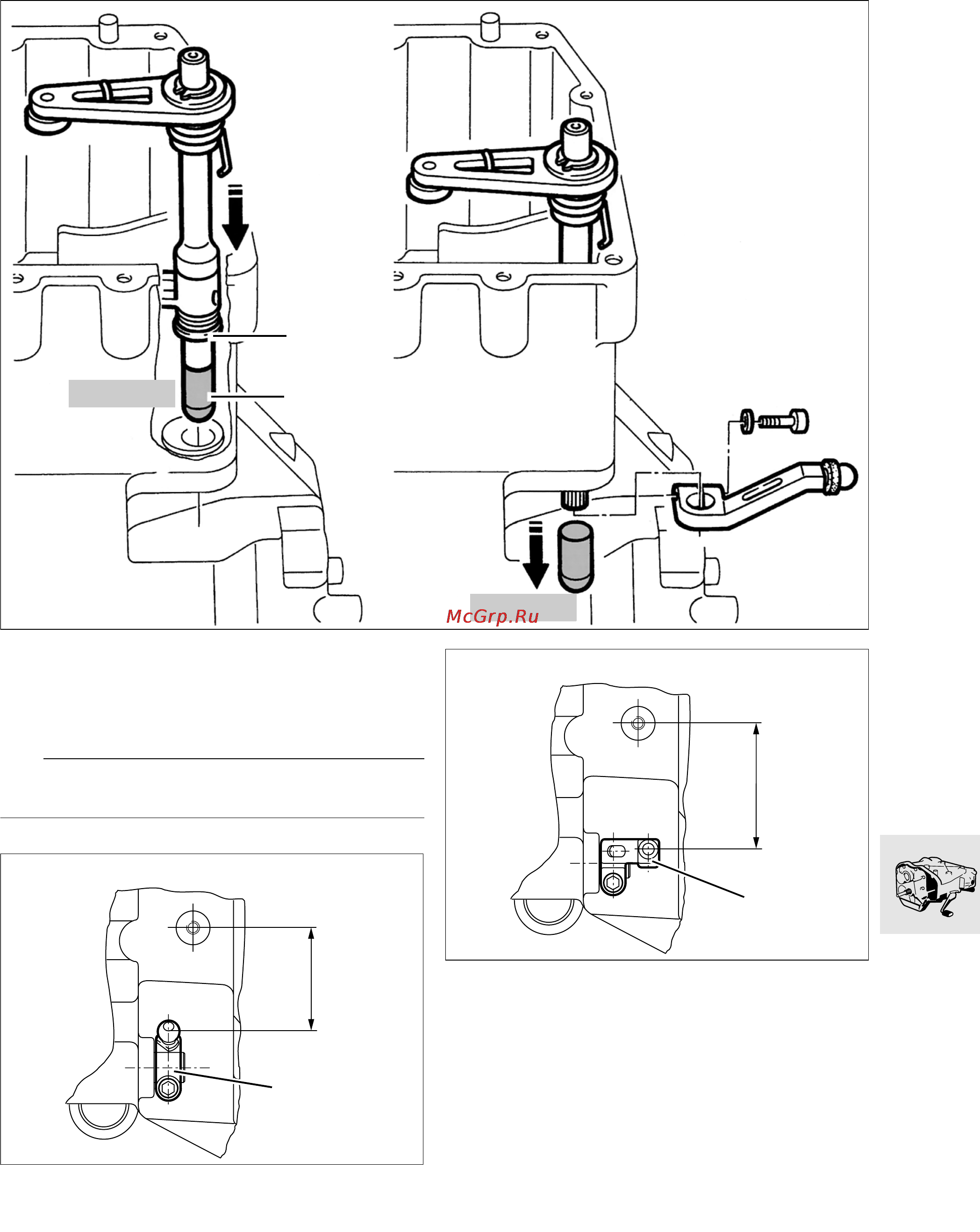

Installing selector shaft
•
Insert selector shaft with sliding sleeve (1),
BMW No.234612.
L Note:
Note washer (2).
•
[RT/GS] Attach gear shift pedal (1) horizontally,
making sure that distance A is correct.
Distance A:..........51.9 ±1.8 mm (2.043 ±0.07 mm)
•
[RS/R] Attach gear shift pedal (1) horizontal, not-
ing distance B.
Maß „B“:.............. 61.2 ±1.8 mm (2.409 ±0.07 mm)
X Tightening torque:
Gear shift pedal.............................................. 9 Nm
23 4 612
23 4 612
2
1
RS230230
A
1
RT230330
B
1
RS230340
