51.4
Removing and installing lock barrel
for fuel tank filler cap
L Caution:
Prevent screws from falling into fuel tank:
cover fuel tank filler neck with cloth.
•

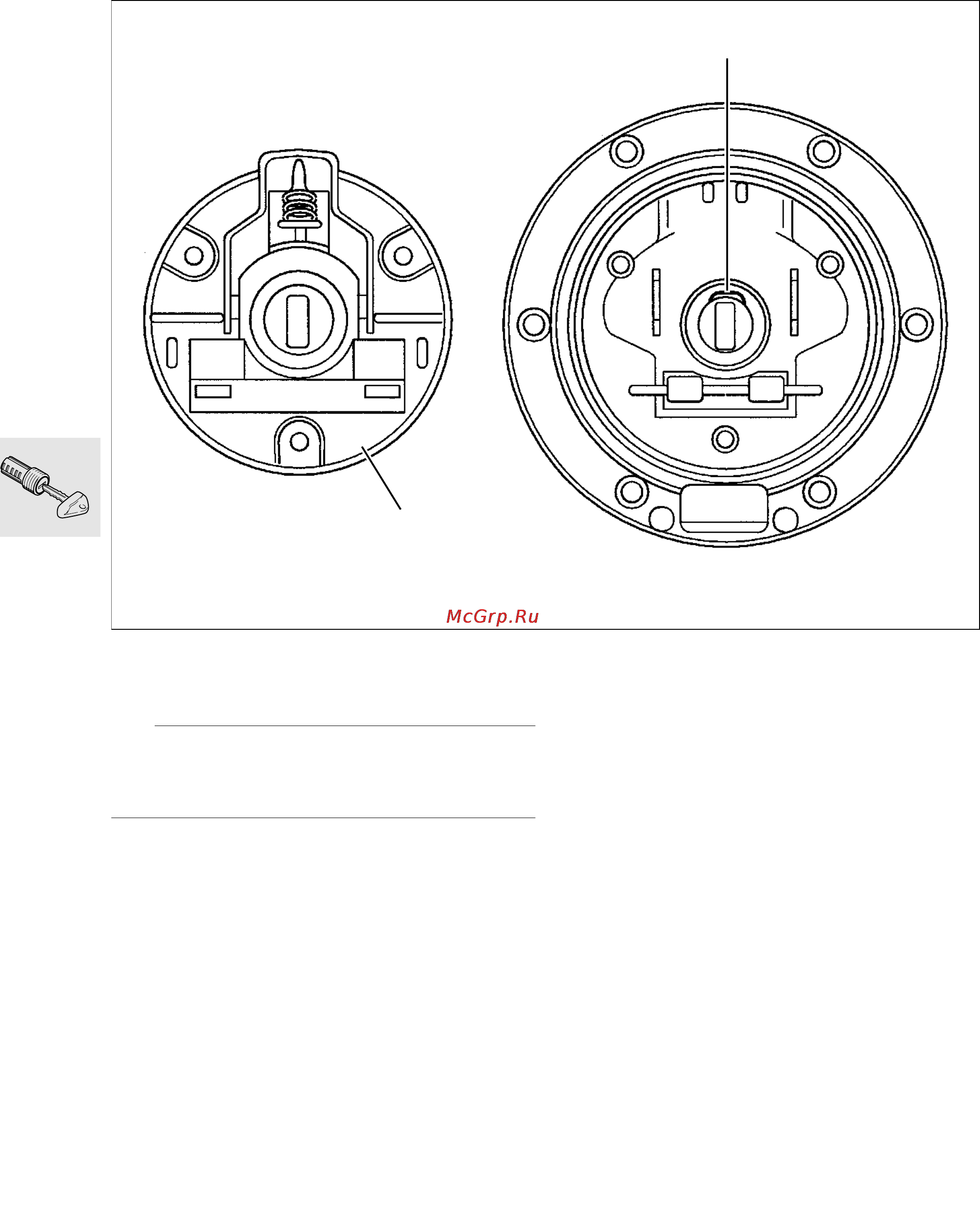

Open cap/remove lower part of cap (1).
•
Insert key in lock barrel and press down on re-
tainer (2).
•
Pull out lock barrel with key.
•
Grease new lock barrel with Shell Retinax A.
•
Install lock barrel with key (at a right angle to
direction of travel).
•
Install in the reverse order of work.
Drilling out lock barrel
•
Drill out entire length of lock barrel with a
4-5 mm ( 0.157 - 0.1969 in) dia. twist drill bit.
•
Repeat with a larger diameter drill bit until the
lock barrel can be removed.
1
2
GS510040
