32.11
Removing and installing wire cable
distributor block
•
[RS/RT] Remove side fairings.
•
Unscrew fuel tank and pull to the rear.
•
Remove cold-start lever (increased idle speed)/
disconnect the wire cable.
•
Remove the cable cover at the throttle operating
fitting.
•
Detach the wire cables at the left and right
throttle stub pipes.
•
Relesse the cable straps.
•

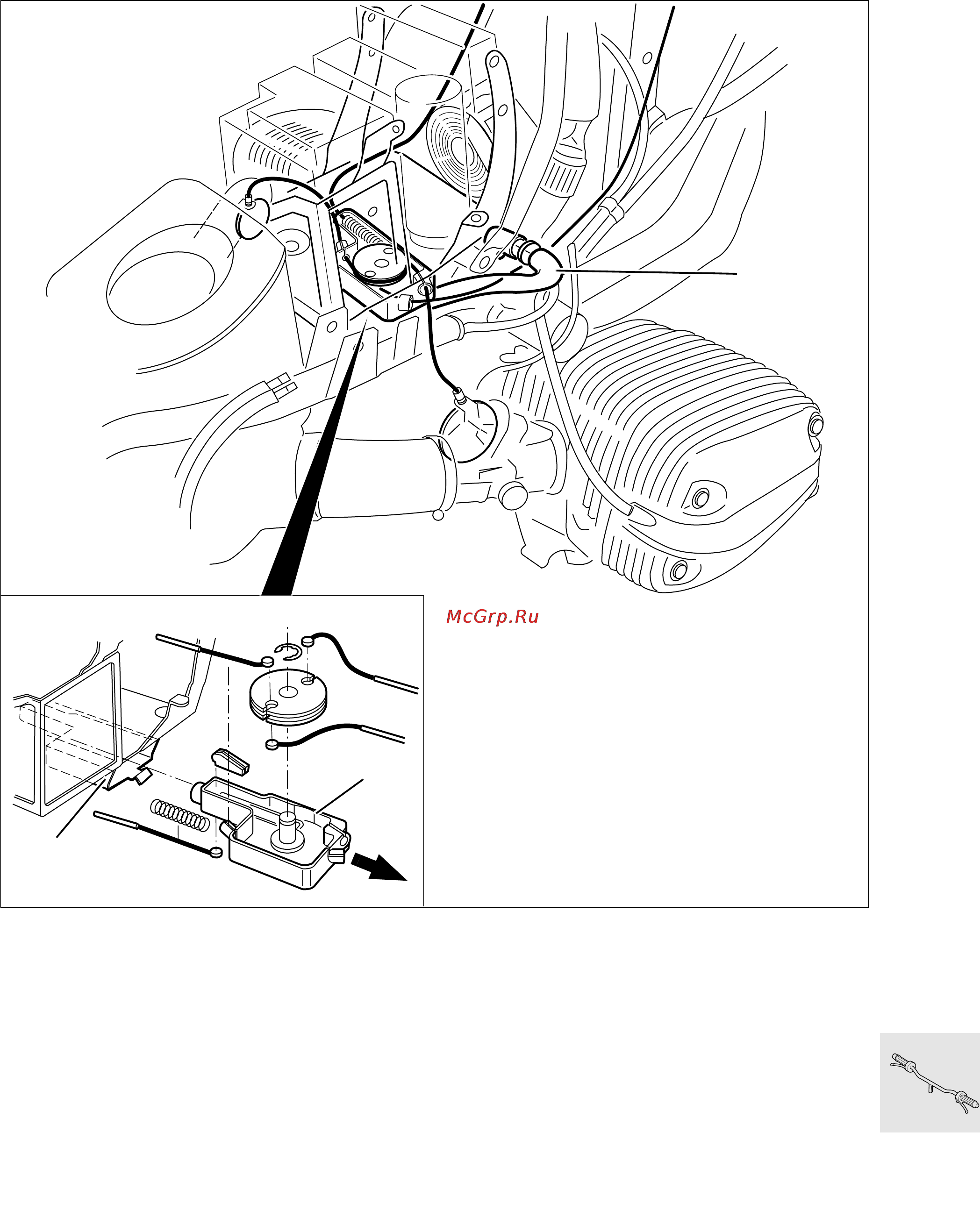

Detach the engine breather pipe (1) from the en-
gine.
•
Pull the wire cable distributor block (2) out of
holder (3) in the direction of the arrow.
•
Install in the reverse order of work.
•
Adjust the wire cables.
a See Group 00
1
3
2
RT320120
