BMW R850 1100GS (2000) [124/464] Dismantling crankcase
![BMW R850 1100GS (2000) [124/464] Dismantling crankcase](/views2/1121034/page124/bg7c.png)
11.74

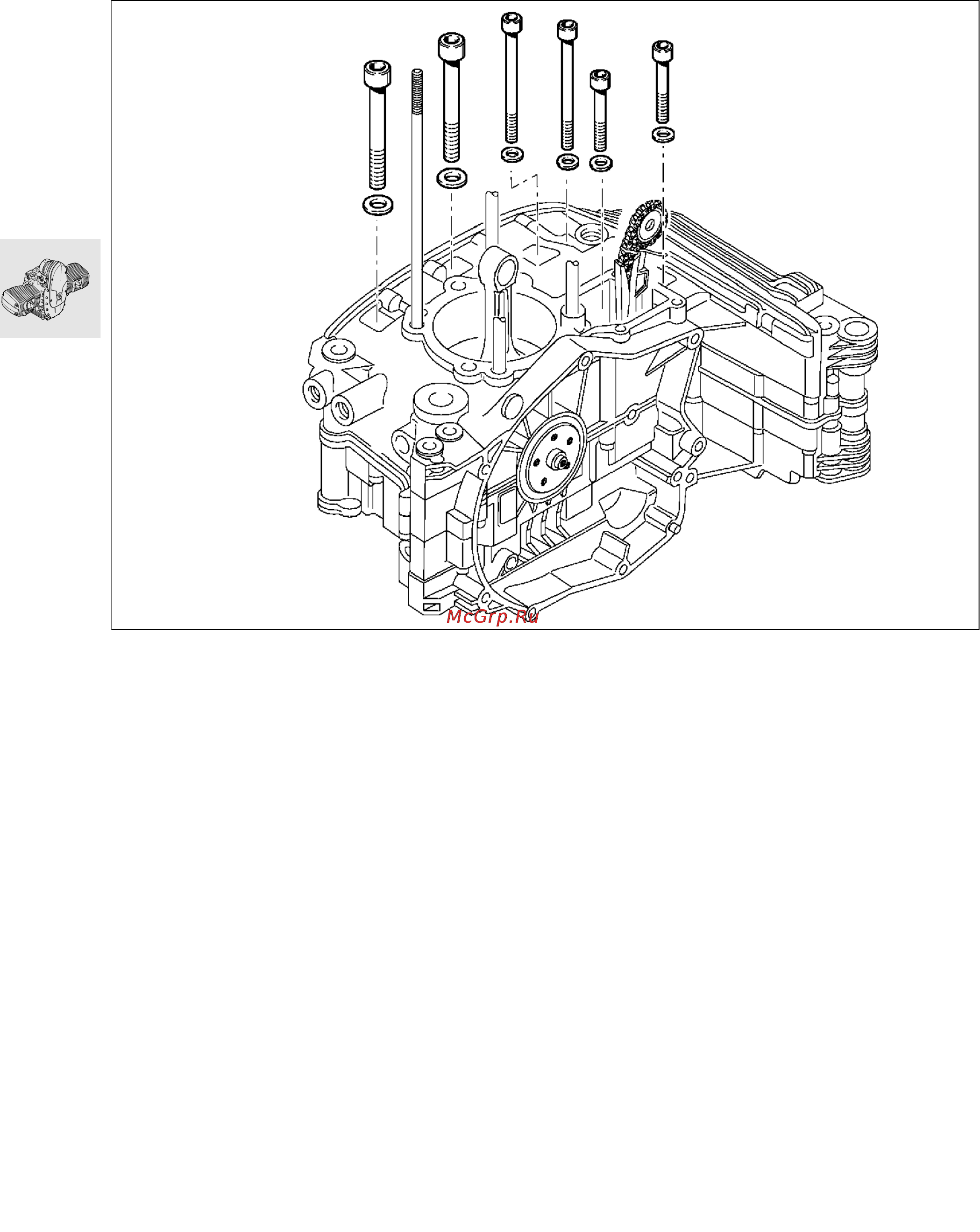

Dismantling crankcase
•
Turn engine on to its side.
•
Remove screws on right side.
M10 x 100
M8 x 80
M8 x 35
M10 x 100
M8 x 80
M8 x 35
RS110261
