33.11

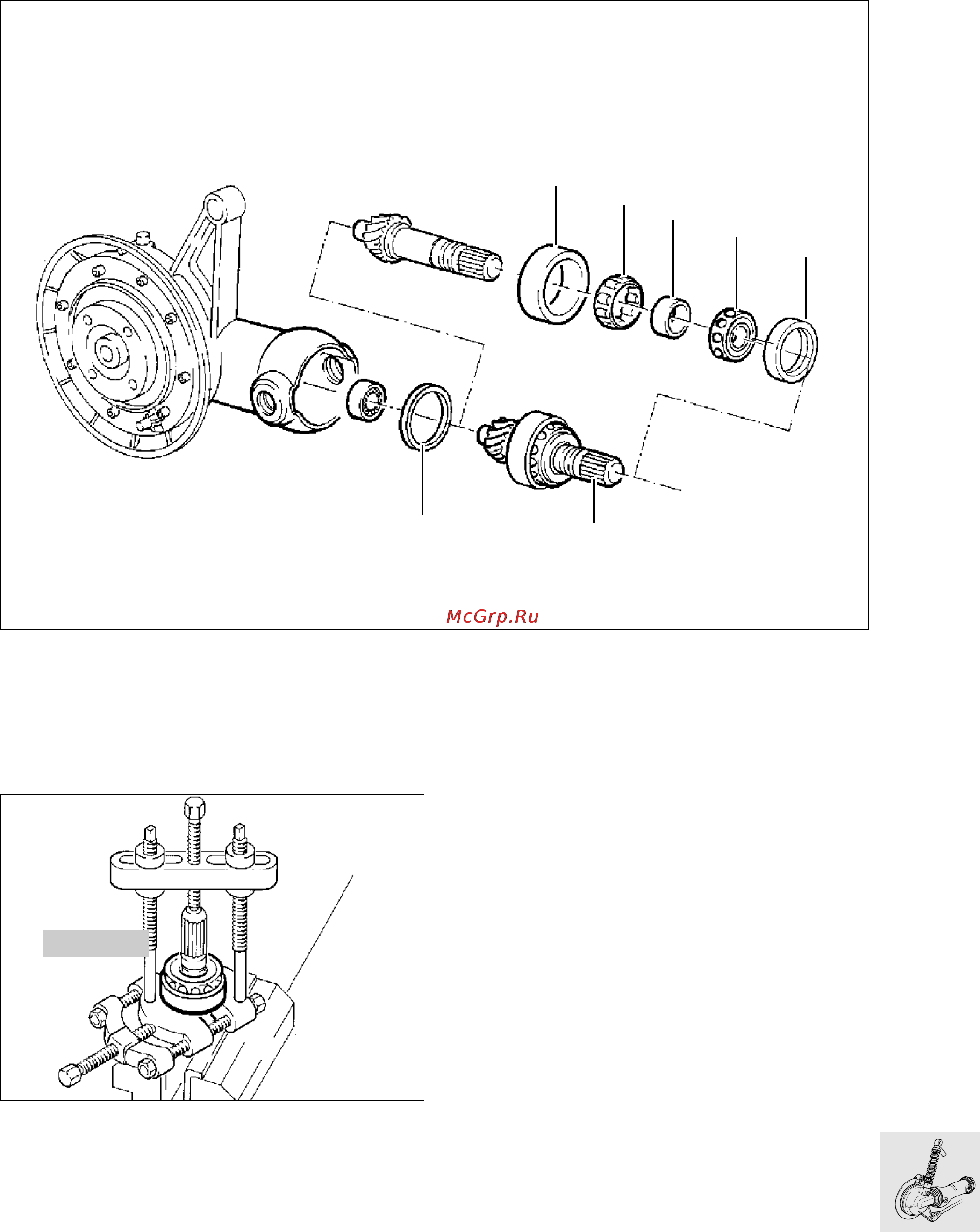

Disassembling input bevel pinion
•
Remove outer bearing race (7).
•
Remove spacer ring (8) from housing.
•
Clamp input bevel pinion (6) into vise with protec-
tive jaws (splines facing upwards).
•
Using puller, BMW No. 00 7 500, pull off both
bearings at the same time.
•
Take off ball thrust bearing (9), inner race (10),
roller bearing cage (11) and outer race (12)
12
11
10
9
7
8
6
LT330030
00 7 500
LT330040
