46.48

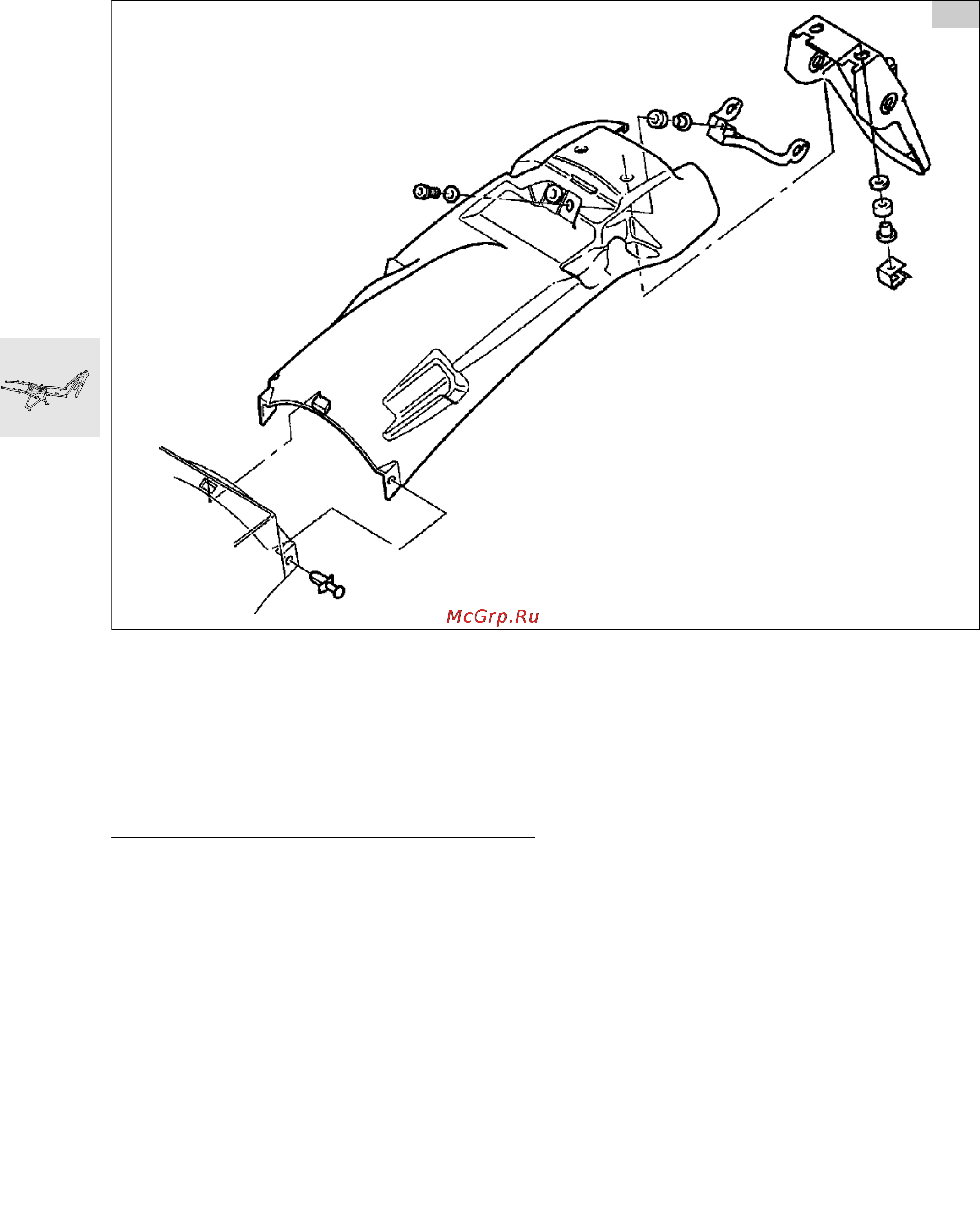

[GS/R] Removing and installing rear
mudguard
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove dualseat.
•
[GS] Remove tool box.
•
[R] Remove rear fairing.
•
Disconnect plugs and leads from rear light and
indicators.
•
Remove number plate bracket.
•
Detach mudguard.
•
Remove wiring harness from rear section.
•
Install in the reverse order of work.
GS
GS460251
