46.36

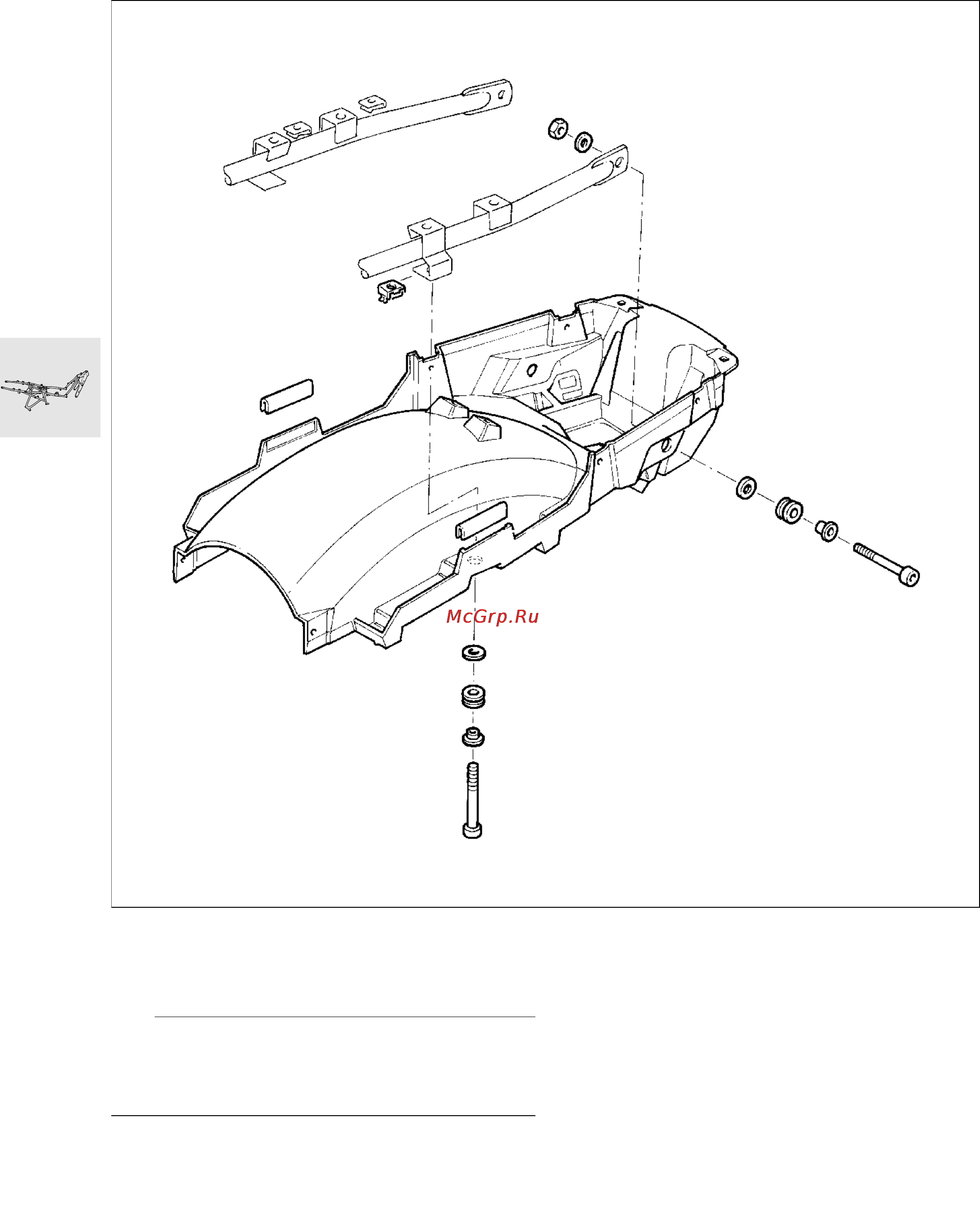

[RS] Removing and installing lower
rear section
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove dualseat.
•
Remove number plate bracket.
•
Remove rear light.
•
Remove rear fairing.
•
Remove turn indicator lenses.
•
Disconnect/detach turn indicators.
•
Detach wiring harness from lower rear section.
•
Remove dualseat lock.
•
Remove lower rear section.
•
Install in the reverse order of work.
RS460050
