32.10

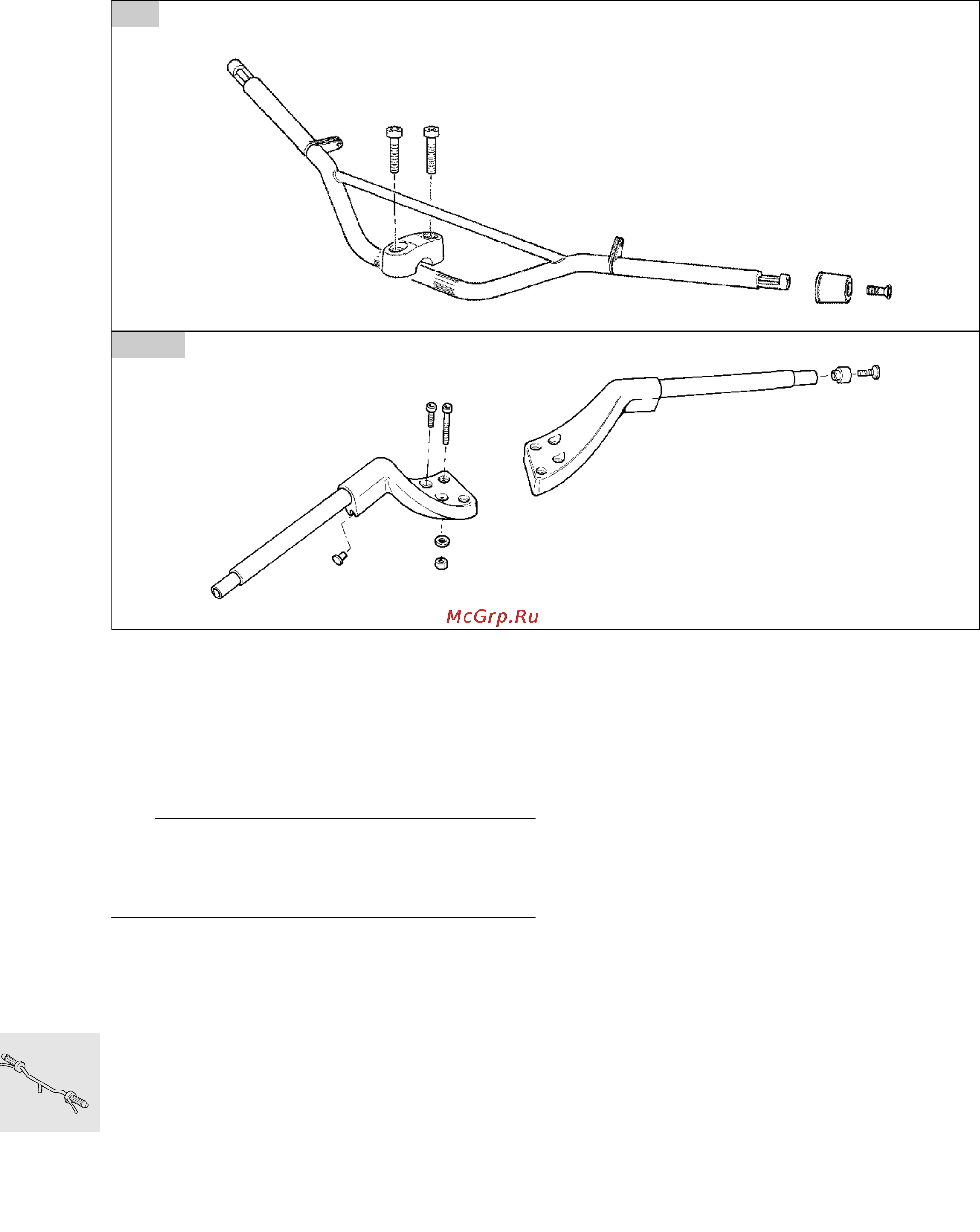

[GS/R/RT] Removing and installing
handlebar
•
Remove left/right handlebar fittings.
•
Remove handlebar.
•
Install in the reverse order of work.
e Caution:
Make sure that brake hoses are correctly routed.
[GS] Align punch mark on handlebar with gap be-
tween clamp blocks.
X Tightening torque::
Clamp to fork bridge
[GS] ............................................................. 21 Nm
Handlebar to fork bridge
[R/RT].......................................................... 21 Nm
Weight to handlebar..................................... 20 Nm
GS
R/RT
GS320030
