46.22

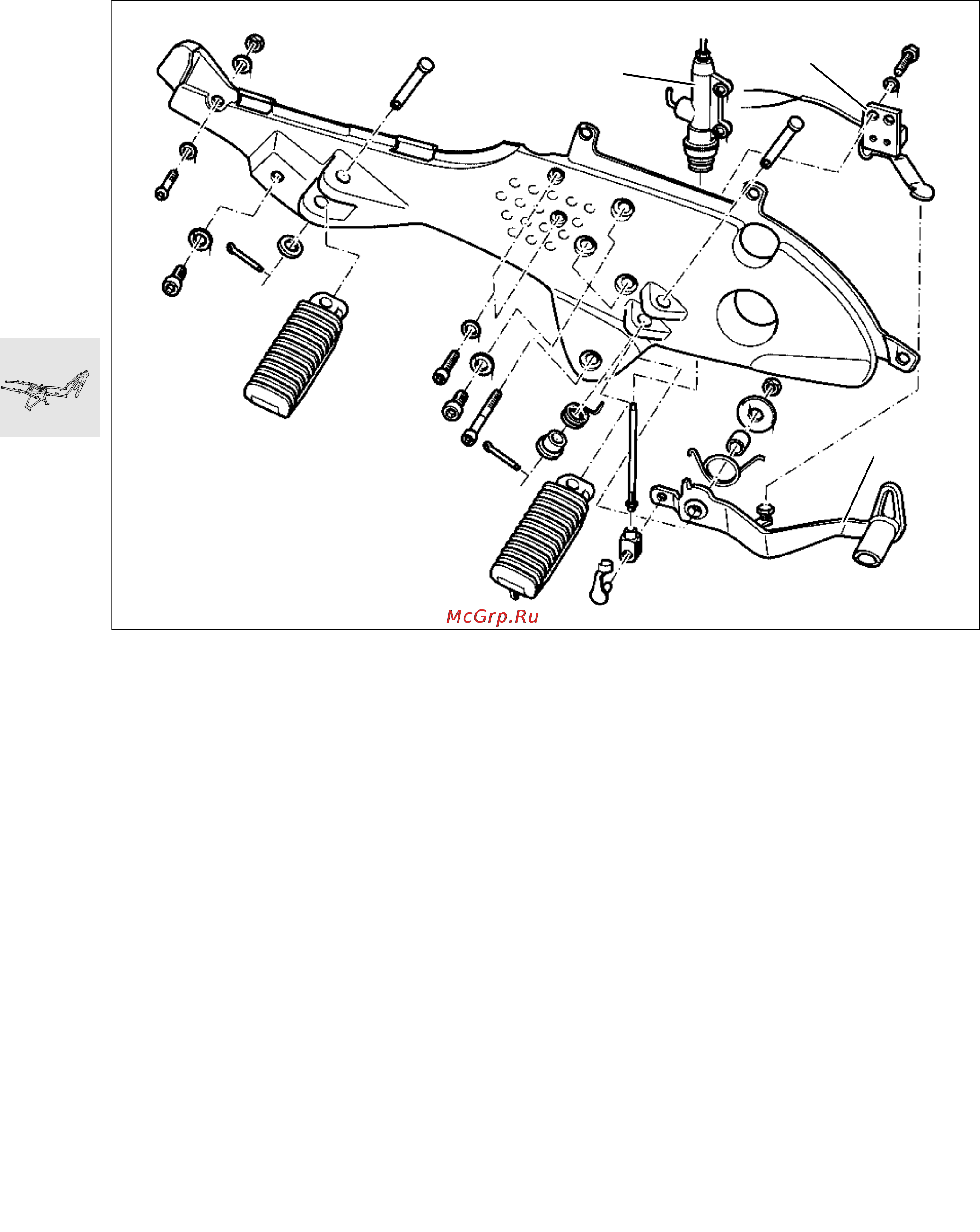

[RT] Removing and installing right
footrest plate
•
Remove dualseat.
•
Remove small side section of fairing at right.
•
Remove right side section of fairing.
•
Release pin on brake linkage.
•
Remove retaining screws for brake master cylin-
der (1) from footrest plate.
•
Detach brake pedal (2) from footrest plate.
•
Remove the footrest plate.
•
Detach the contact switch (3).
•
Install in the reverse order of work.
X Tightening torque:
Footrest plate to rear frame
M 6 screw ...................................................... 6 Nm
M 8 screw .................................................... 21 Nm
M 10 screw .................................................. 42 Nm
1
2
3
RT460370
