33.16

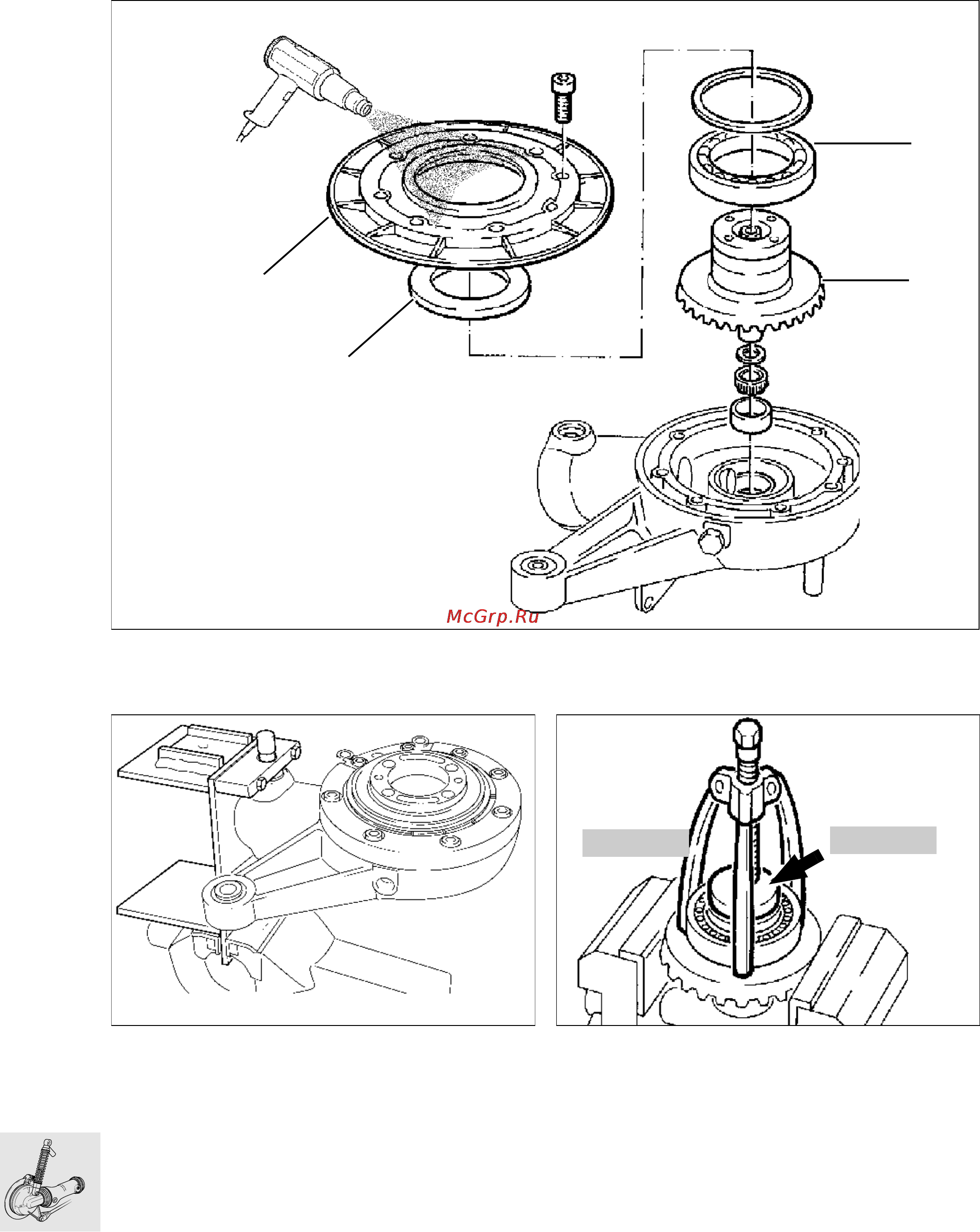

Removing crown wheel
•
Remove housing cover (1) with crown wheel (2)
and bearing (3).
•
Heat housing cover to 100 °C and pull it off.
•
Force shaft seal (4) out of housing cover with
drift.
•
Clamp crown wheel in vise with protective jaws..
•
Insert pressure block, BMW No. 33 1 307
(arrow).
•
Using puller, BMW No. 33 1 830, pull off the
deep-groove ball bearing.
1
2
3
4
j
100
LT330111
RT330121
33 1 307
33 1 830
LT330130
