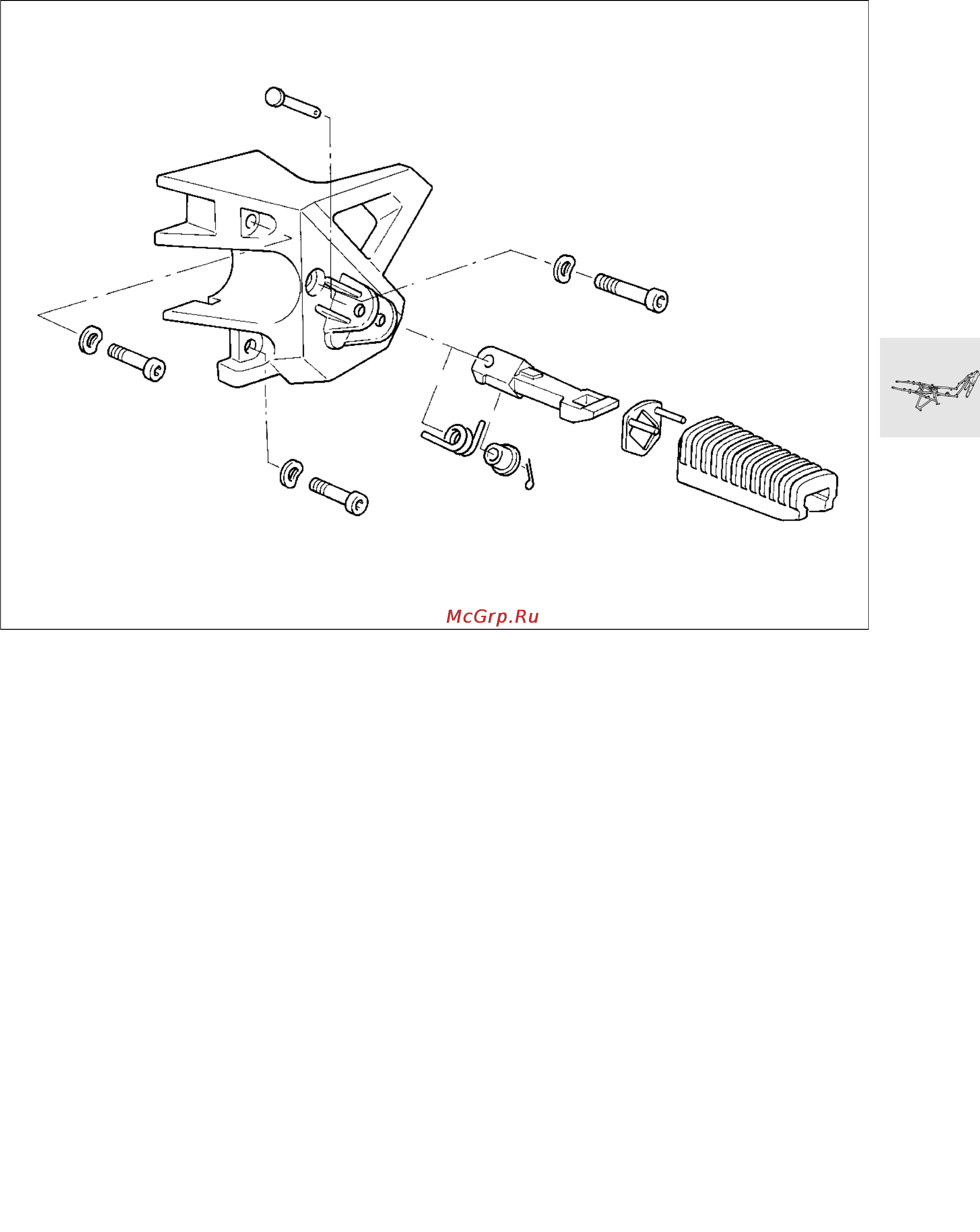

[RS/R] Removing and installing front
footrest plate
X Tightening torque:
Footrest plate to gearbox ............................. 22 Nm
Master cylinder to footrest plate.................... 7 Nm
Brake pedal to footrest plate ........................ 37 Nm
RS460190
