BMW R850 1100GS (2000) [136/464] Installing clutch housing
![BMW R850 1100GS (2000) [136/464] Installing clutch housing](/views2/1121034/page136/bg88.png)
11.86

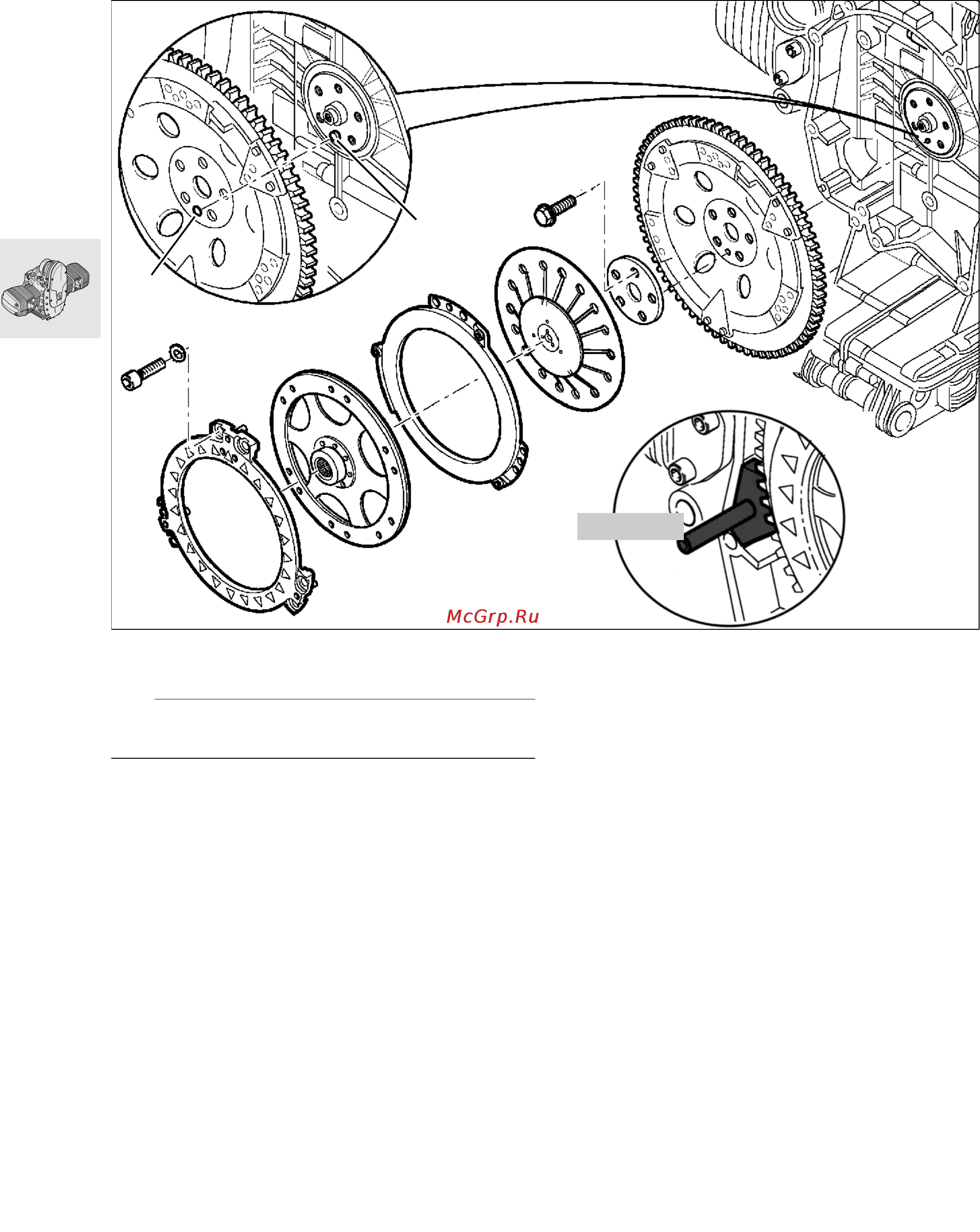

Installing clutch housing
e Caution:
Always use new bolts for housing and cover.
•
Install clutch housing with mark (1) aligned with
crankshaft mark (2).
•
Lock clutch housing with retaining device,
BMW No. 11 5 640.
•
Insert all screws by hand and tighten down.
X Tightening torque:
Clutch housing to crankshaft
(screw threads oiled) .................................... 40 Nm
Additional wrench angle.................................... 32°
1
2
11 5 640
RS210011
