34.21

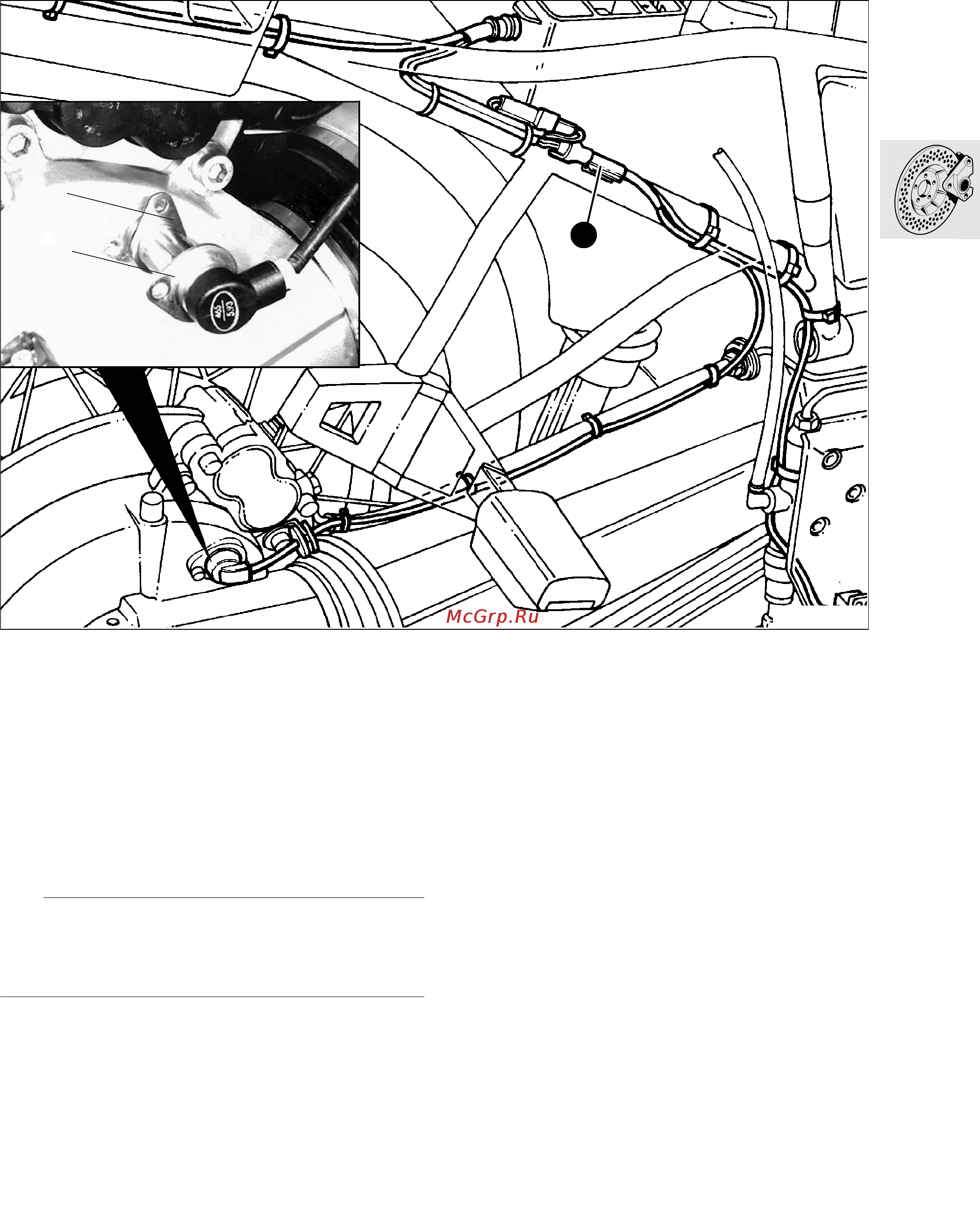

[GS/R/RT] Removing and installing
rear ABS sensor
•
[RT] Remove small right side section of fairing.
•
Before removing/installing, clean the sensor
bore.
•
Detach sensor (1) with Torx T 25.
•
Separate plug connector (2) in the sensor line.
•
Install in the reverse order of work.
•
Coat O-rings with oil before installing
e Caution:
Run the sensor line correctly.
Check sensor gap and adjust if necessary with
spacer plates (3).
Sensor gap:.. 0.45...0.55 mm (0.0177...0.02165 in)
X Tightening torque:
Sensor ...........................................handtight, 4 Nm
1
3
2
GS340170
