BMW R850 1100GS (2000) [230/464] Installing selector drum
![BMW R850 1100R (2000) [230/464] Installing selector drum](/views2/1121034/page230/bge6.png)
23.32

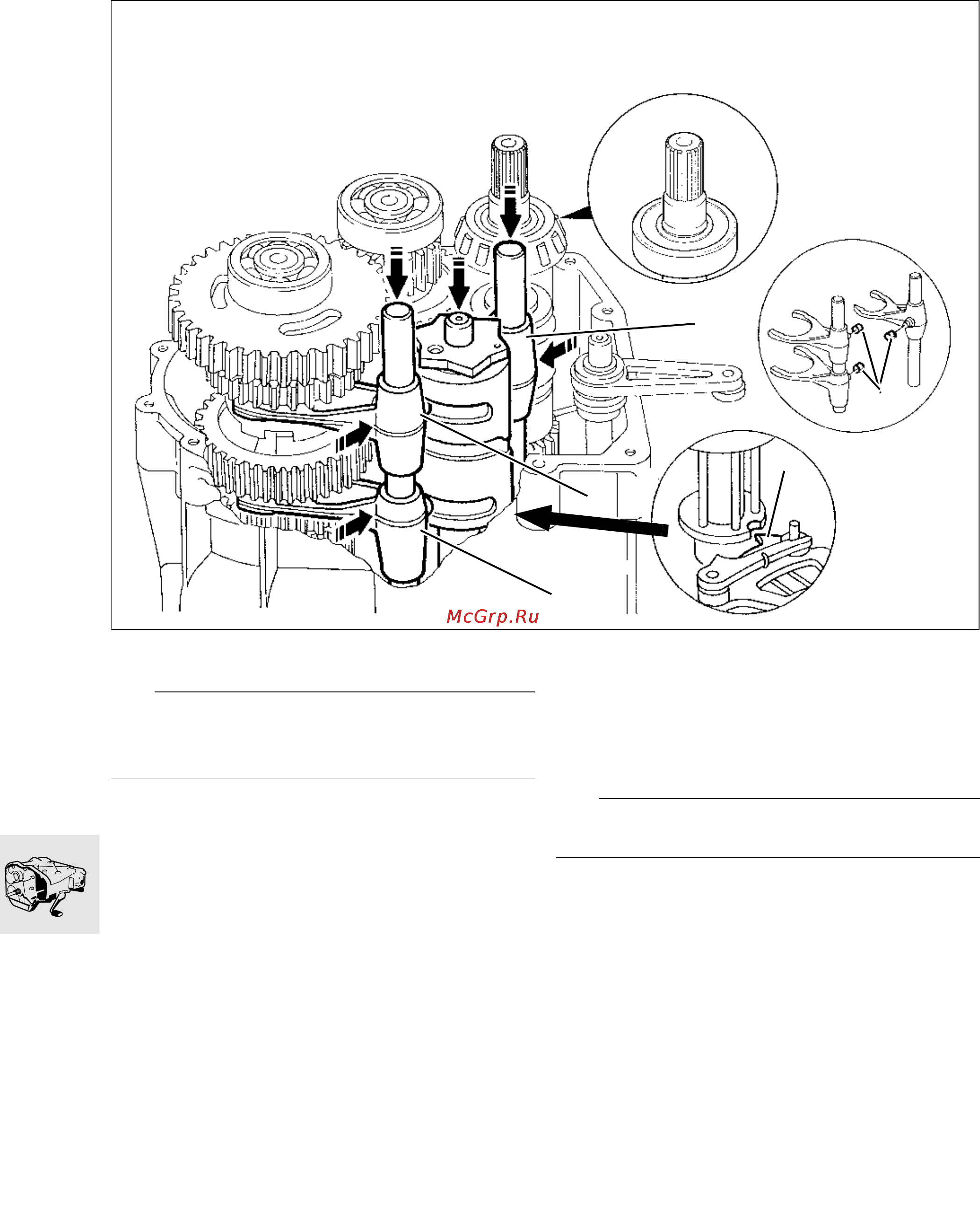

Installing selector forks
L Note:
Fit rollers (1) on guide pins and apply some grease
to the pins.
•
Install selector fork (2) for 5th gear in underside
of output shaft with short end of guide facing up-
wards.
•
Install selector fork (3) for 1st and 2nd gears with
central guide in top of output shaft.
•
Install selector fork (4) for 3rd and 4th gears in
idler shaft with short end of guide pointing down-
wards.
Installing selector drum
•
Swing the selector forks over to the edge of the
housing.
•
Install selector drum with its recess facing the
selector shaft pawl (5).
L Note:
If necessary, secure needle rollers with grease.
•
Insert selector fork guide pins into selector drum.
•
Install shift fork shafts.
1
5
2
3
4
Clean Bearing
RT230221
