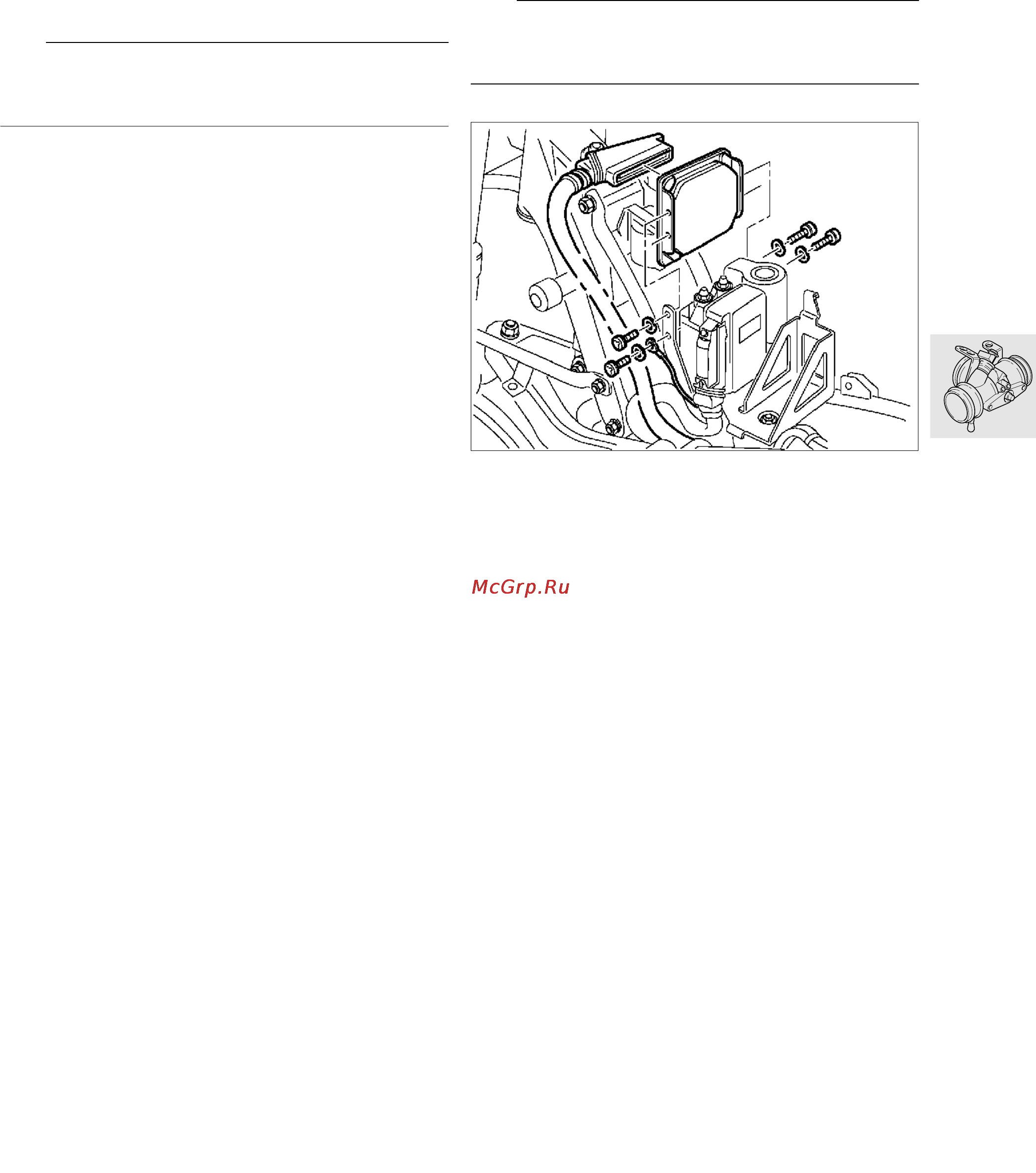

13.9
Removing and installing injectors
•
Unfasten retainer (3) for fuel pipe and pull off the
pipe.
•
Press in the spring catch at the injector plug (5)
and pull off the plug.
•
Remove injector.
e Caution:
Make sure that O-rings at injector are in good con-
dition.
•
Install in the reverse order of work.
Removing and installing Motronic
control unit
•
Remove fuel tank.
e Caution:
Switch off ignition; disconnect ground (earth) lead at
battery and insulate it.
•
Remove Motronic control unit.
•
Remove connector strip.
•
Install in the reverse order of work.
