61.37

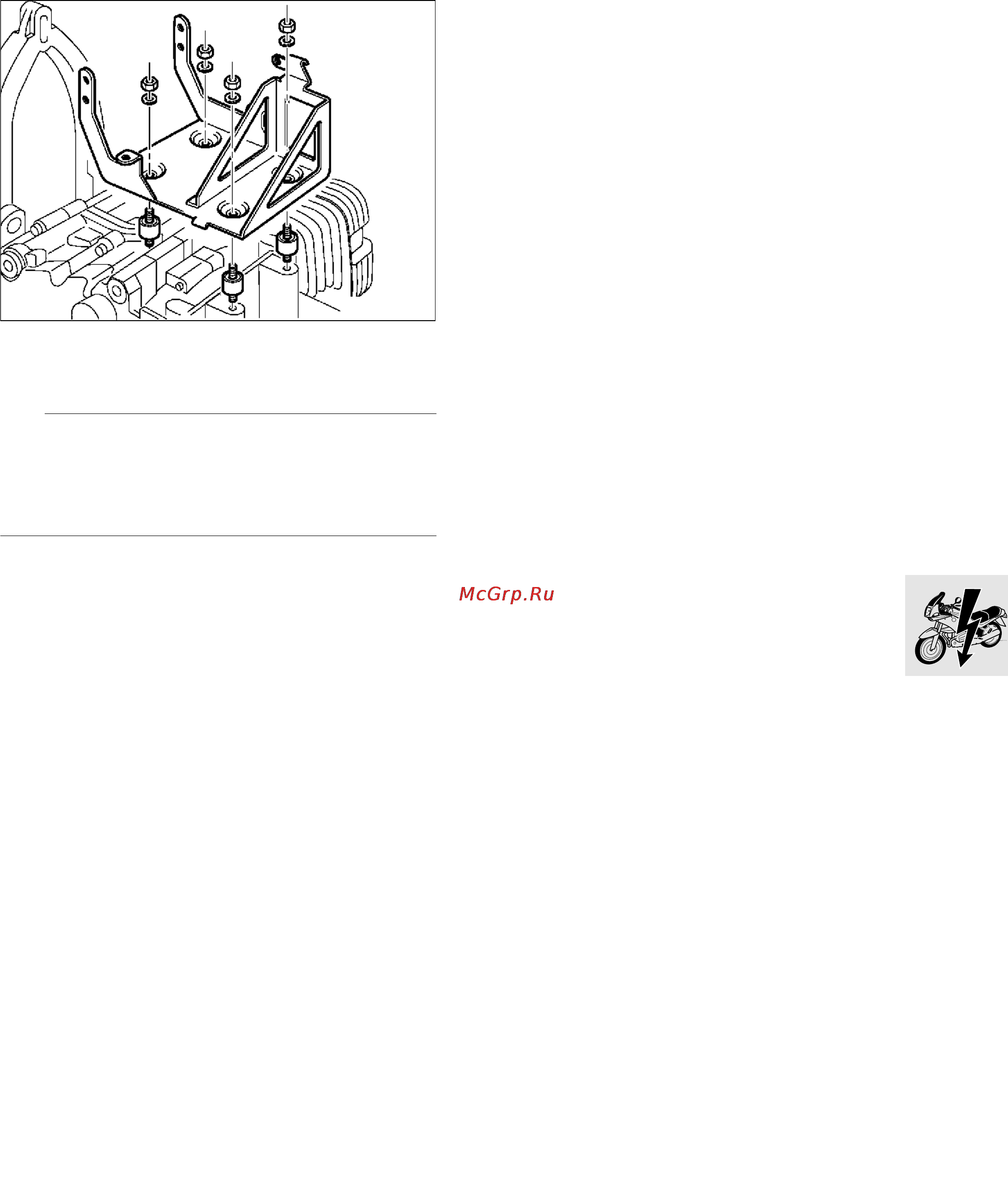

Removing and installing battery
holder
•
Remove fuel tank.
•
Remove battery.
e Caution:
Disconnect negative battery terminal first, then pos-
itive terminal.
Reconnect positive battery terminal first, then
negative terminal.
•
Remove Motronic control unit.
•
[ABS] Remove control unit..
•
En caso necesario, soltar el distribuidor
de los cables de mando
•
Remove the battery holder.
•
Install in the reverse order of work.
RS610010
