11.42
•

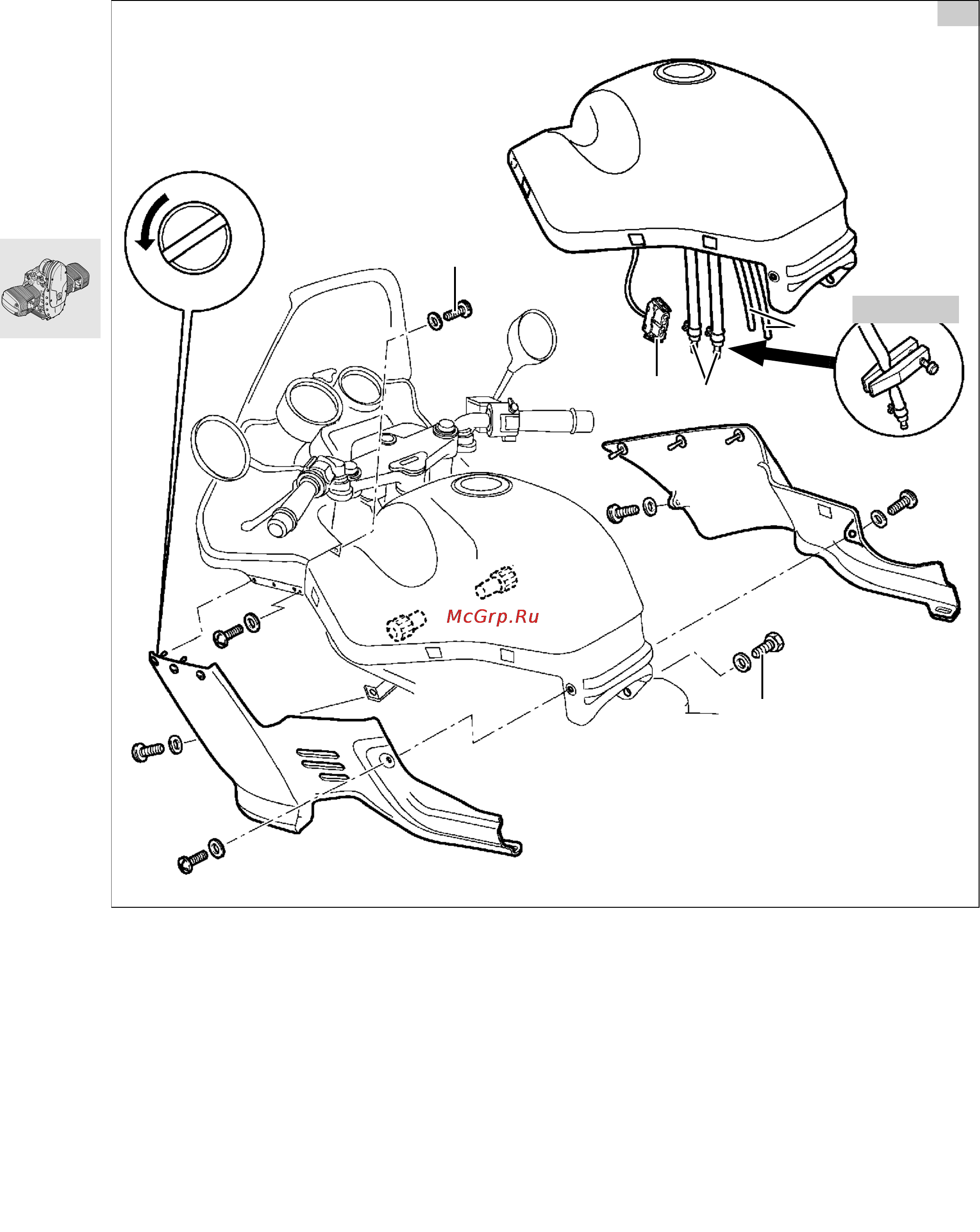

Remove dualseat.
•
[RS/GS/RT] Remove side sections of fairing.
•
[RS] Detach inner cockpit panel (1) at fuel tank.
•
[R] Unscrew fuel tank cover.
•
[RT] Detach storage compartment from tank.
•
Unfasten fuel tank mount (2).
•
Seal, loosen and pull off fuel feed and return line
(3) with hose clip, BMW No. 13 3 010.
•
Remove vent pipes (4).
•
Remove connector at fuel pump (5).
•
Remove fuel tank.
2
5
1
3
4
13 3 010
RS
RS160010
