BMW R850 1100GS (2000) [212/464] Removing selector drum
![BMW R850 1100GS (2000) [212/464] Removing selector drum](/views2/1121034/page212/bgd4.png)
23.14

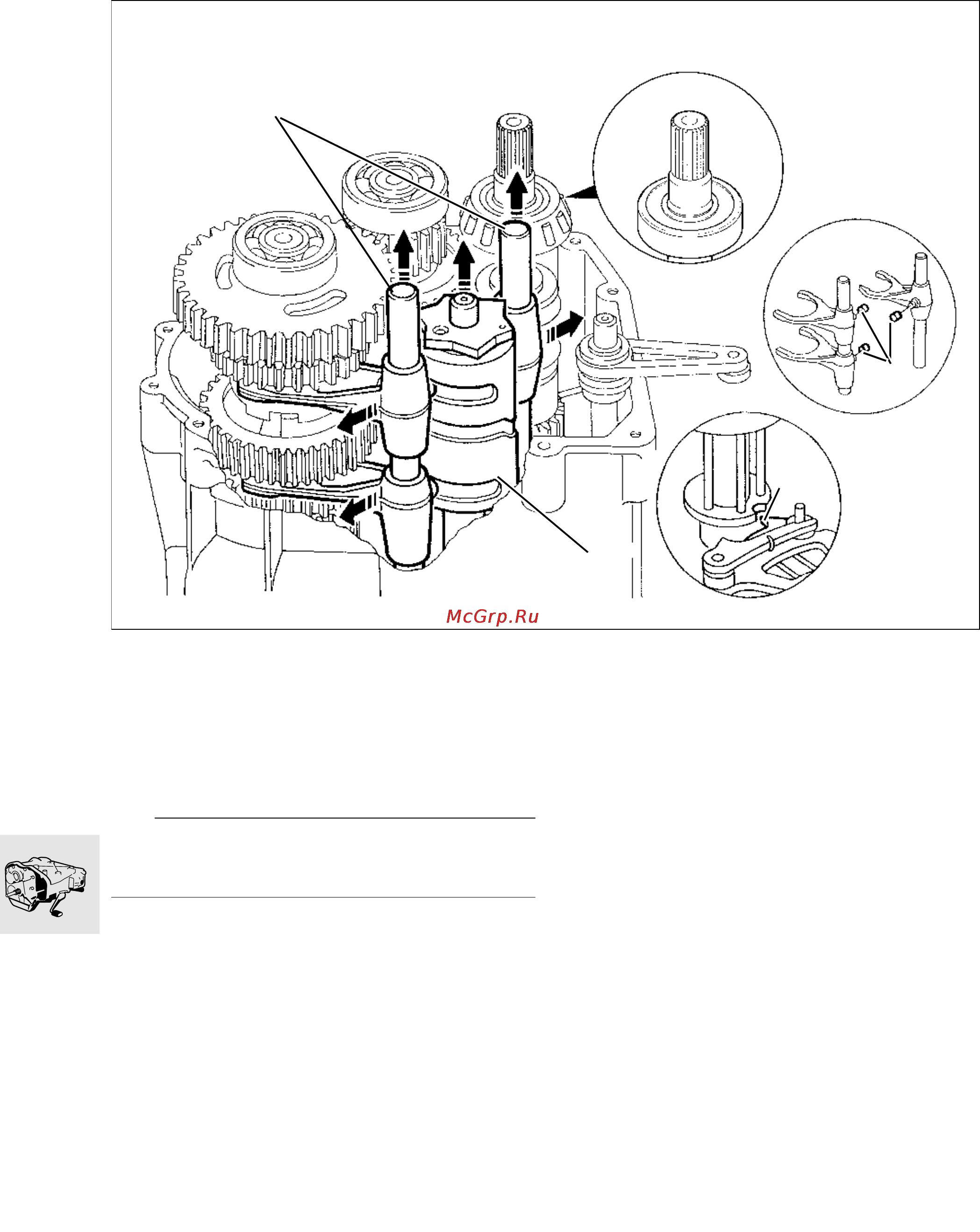

Removing selector drum
•
Withdraw selector fork shafts (1) from gearbox
housing.
•
Turn selector forks outwards.
•
Position pawl (2) opposite recess in selector
drum.
L Note:
Avoid damage to rollers (4) on guide pins of selector
forks.
•
Withdraw selector drum (3), turning it slightly at
the same time.
•
Remove selector forks.
1
3
4
2
Clean Bearing
RT230041
