46.15

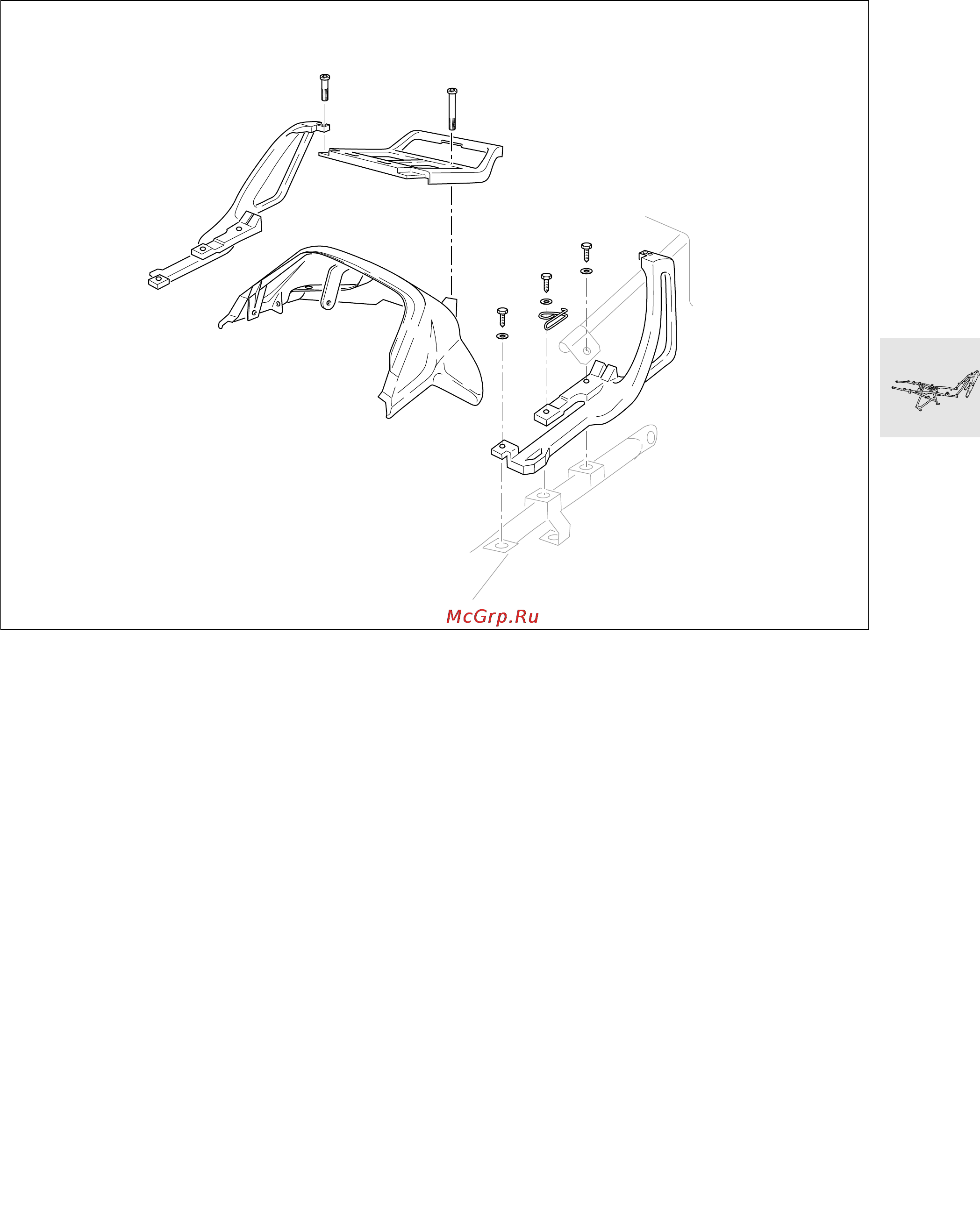

[RT] Removing and installing lug-
gage rack/case holder
•
Remove dualseat.
•
Remove luggage rack/case holder.
•
Install in the reverse order of work.
2x
4x
RT460320
