62.8

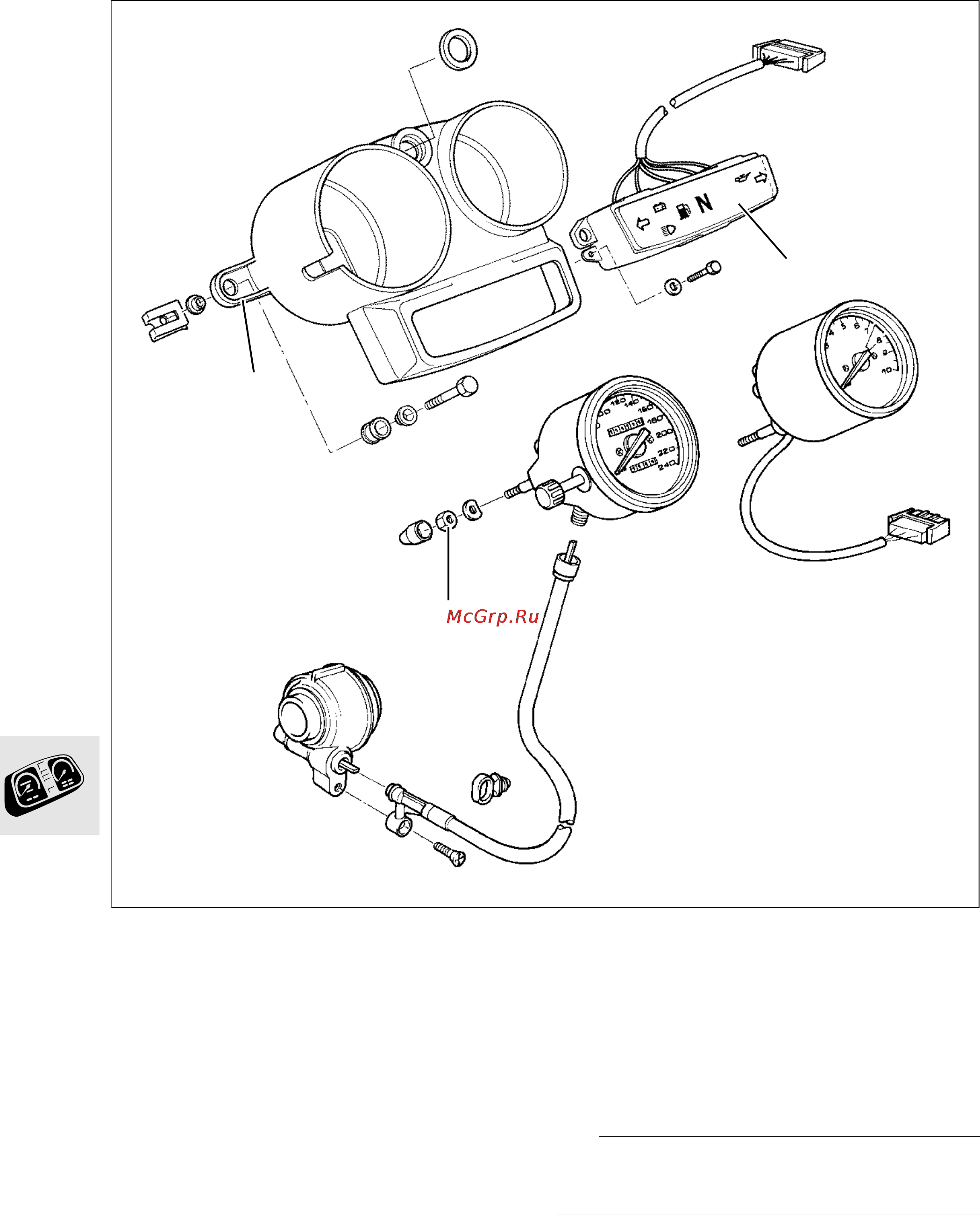

[RS] Removing and installing
instrument cluster
•
Remove inner cover for trim.
•
[Windshield adjustment] Turn windshield
adjuster shaft to left/detach.
•
Detach instrument cluster (1) and pull up away
from mount.
•
Detach speedometer shaft.
•
Disconnect plugs.
•
Install in the reverse order of work.
[RS] Dismantling and assembling
instrument cluster
•
Unscrew threaded connections at
instruments (2).
•
Pull off instrument lighting.
•
Remove monitor unit (3).
•
Assemble in the reverse order of work..
e Caution:
When installing the speedometer, note the grommet
on the trip distance recorder reset button.
1
3
2
RS620011
