36.12

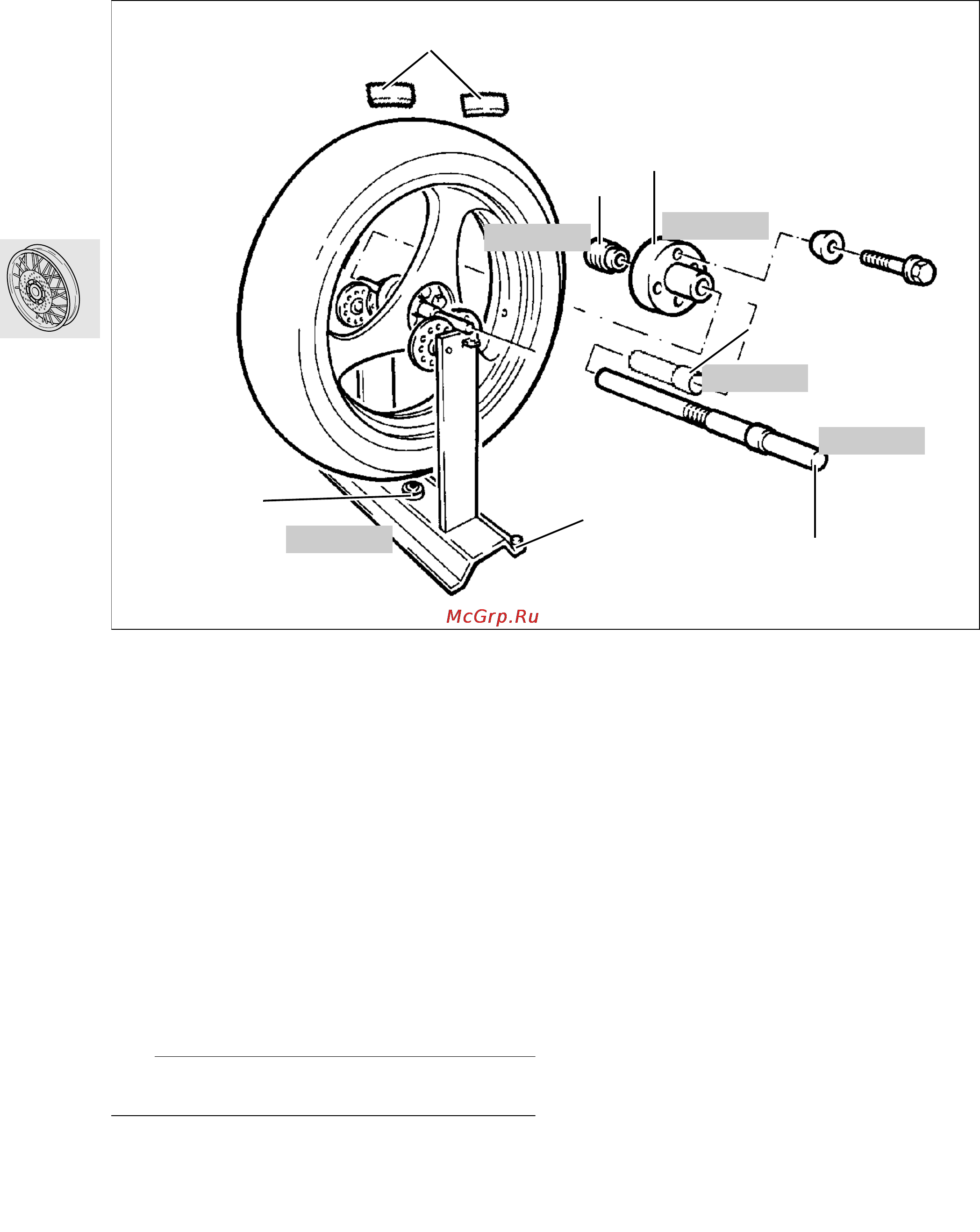

Static balancing of front wheel/rear
wheel
•
Install balancing shaft (1), BMW No. 36 3 606,
with measuring bushing (2) and nut (3),
BMW No. 36 3 616, in the front wheel bearings.
•
Lightly preload bearing with knurled nut (3).
•
At the rear wheel, attach mounting fixture (4),
BMW No. 36 3 613, on the centering collar side
with the wheel studs and spacing washer, then
install the balancing shaft.
•
Align the balancing fixture, BMW No. 36 3 600,
with knurled screws/bubble gauge (5/6).
•
Allow wheel to settle.
•
Clean point of adhesion.
•
Attach adhesive weights (7) opposite heaviest
point of wheel (arrow), evenly distributed on both
sides (left/right) of rim.
e Caution:
Maximum balancing weight 60 g (2.1 oz.).
•
Repeat balancing procedure as a check.
36 3 616
36 3 613
36 3 606
36 3 616
36 3 600
1
2
3
4
5
6
7
RS360050
