23.20
Removing and installing deep-groove
ball bearing and race/roller bearing for
idler shaft
L Note:
If defective, the complete idler shaft must be
replaced.
•

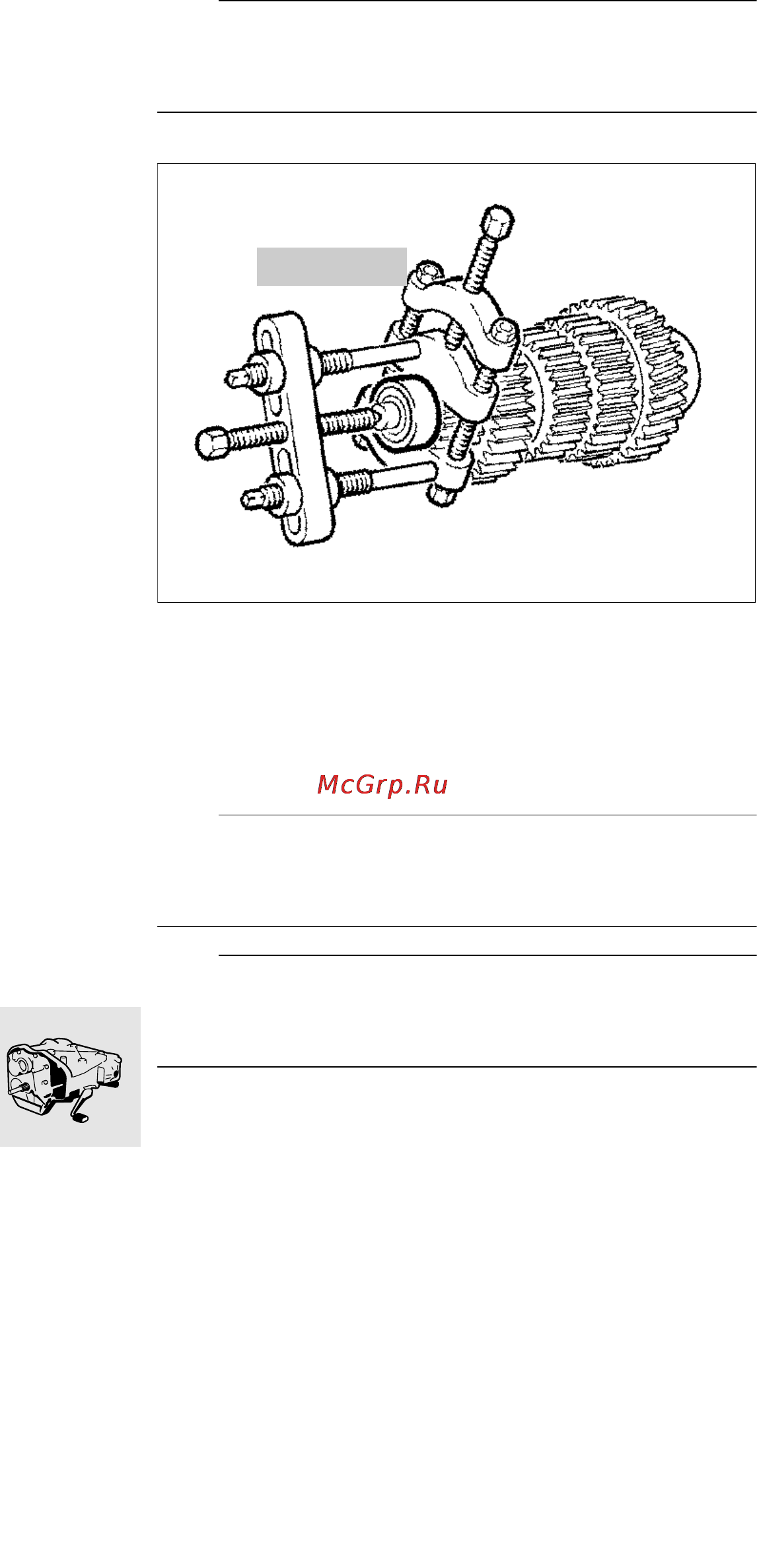

Pull off deep-groove ball bearing or race/roller
bearing with universal puller,
BMW No. 00 7 500.
•
To install deep-groove ball bearing or race/roller
bearing, heat to 80 °C and push into position.
e Caution:
If necessary, drive further on by striking inner race
only.
e Caution:
Be careful of the sealing washer as you heat the
bearing (Clean Bearing); risk of damage.
00 7 500
RS230181
