BMW R850 1100GS (2000) [133/464] Assembling engine block
![BMW R850 1100GS (2000) [133/464] Assembling engine block](/views2/1121034/page133/bg85.png)
11.83

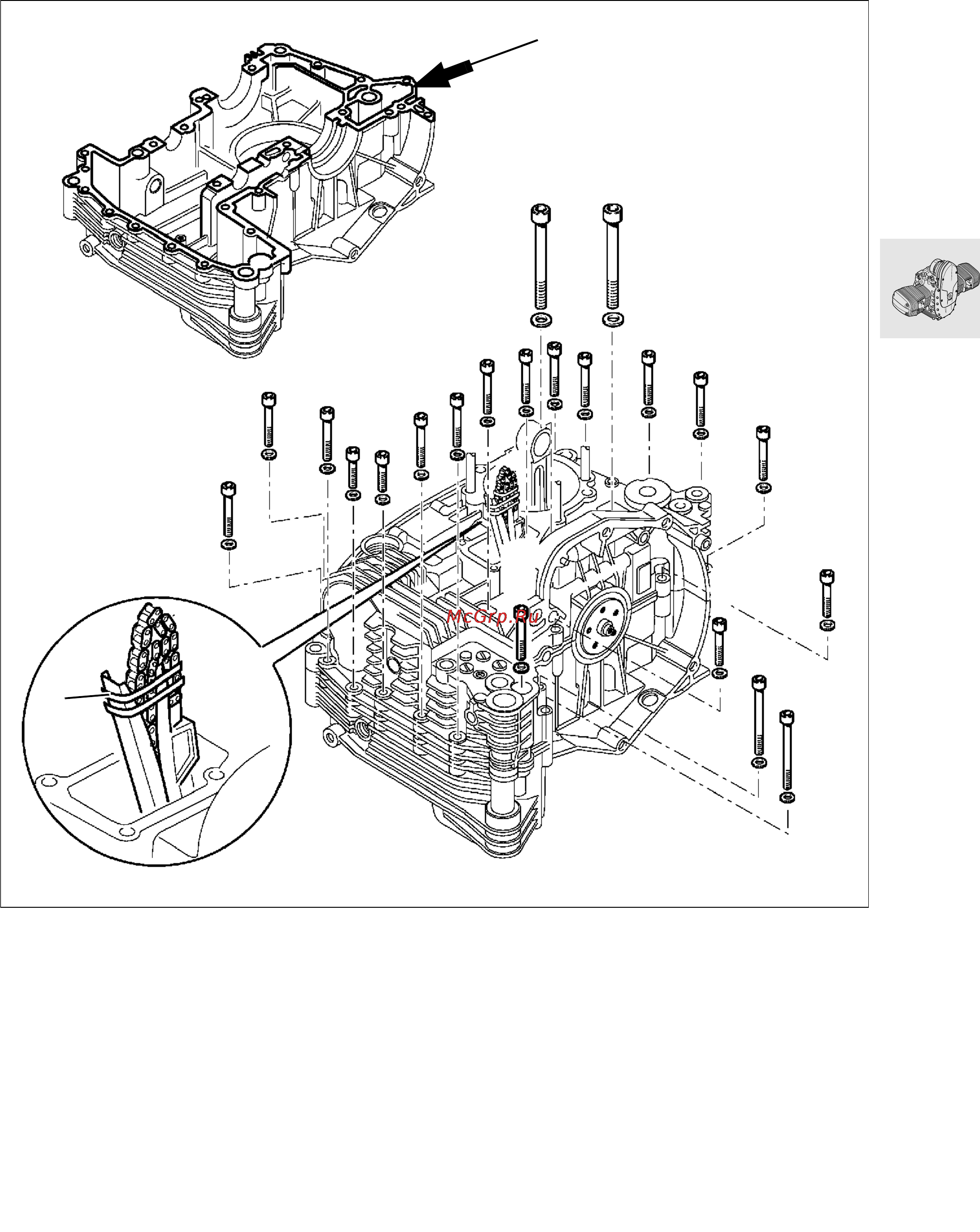

Assembling engine block
•
Coat clean, grease-free sealing faces (arrow)
with 3-Bond 1209.
•
Secure the timing chain with rubber band (1) to
the timing chain tensioning and slide rail.
M6x50
M6x25
M6x35
M10x100
M6x50
M6x25
M6x35
M6x35
M6x50
M6x50
M10x100
M6x50
M6x35
M6x35
M6x35
M6x50
M6x35
M6x50
M6x50
M6x50
M6x25
1
u
RS110920
