11.84
•

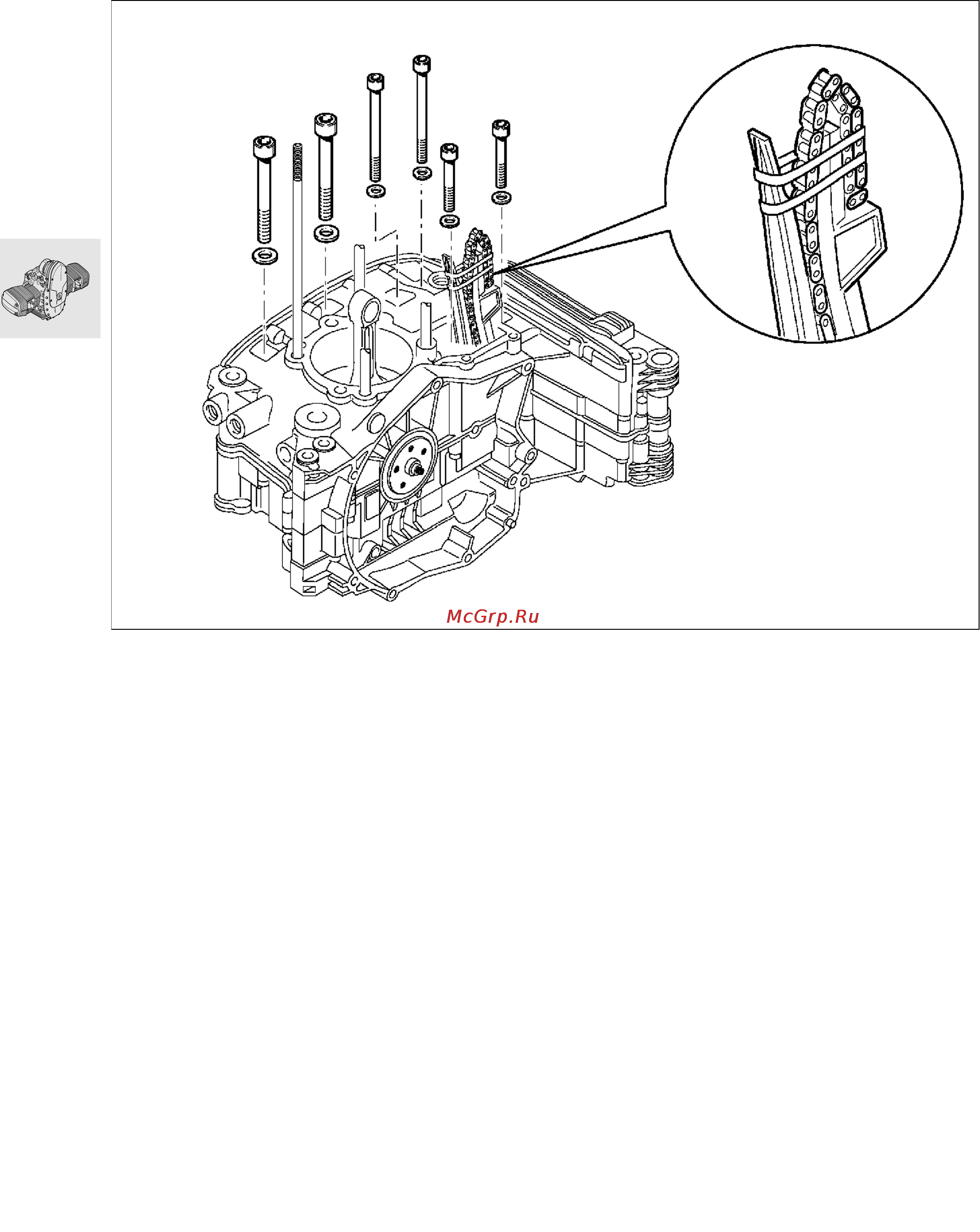

Bolt the crankcase sections together.
Tightening torque/tightening sequence:
1. M10 screw (oiled)..................................... 45 Nm
2. M 8 screw (oiled)...................................... 20 Nm
3. M 6 screw .................................................. 9 Nm
M10x100
M8x80
M8x35
M10x100
M8x80
M8x35
RS110391
