13.7

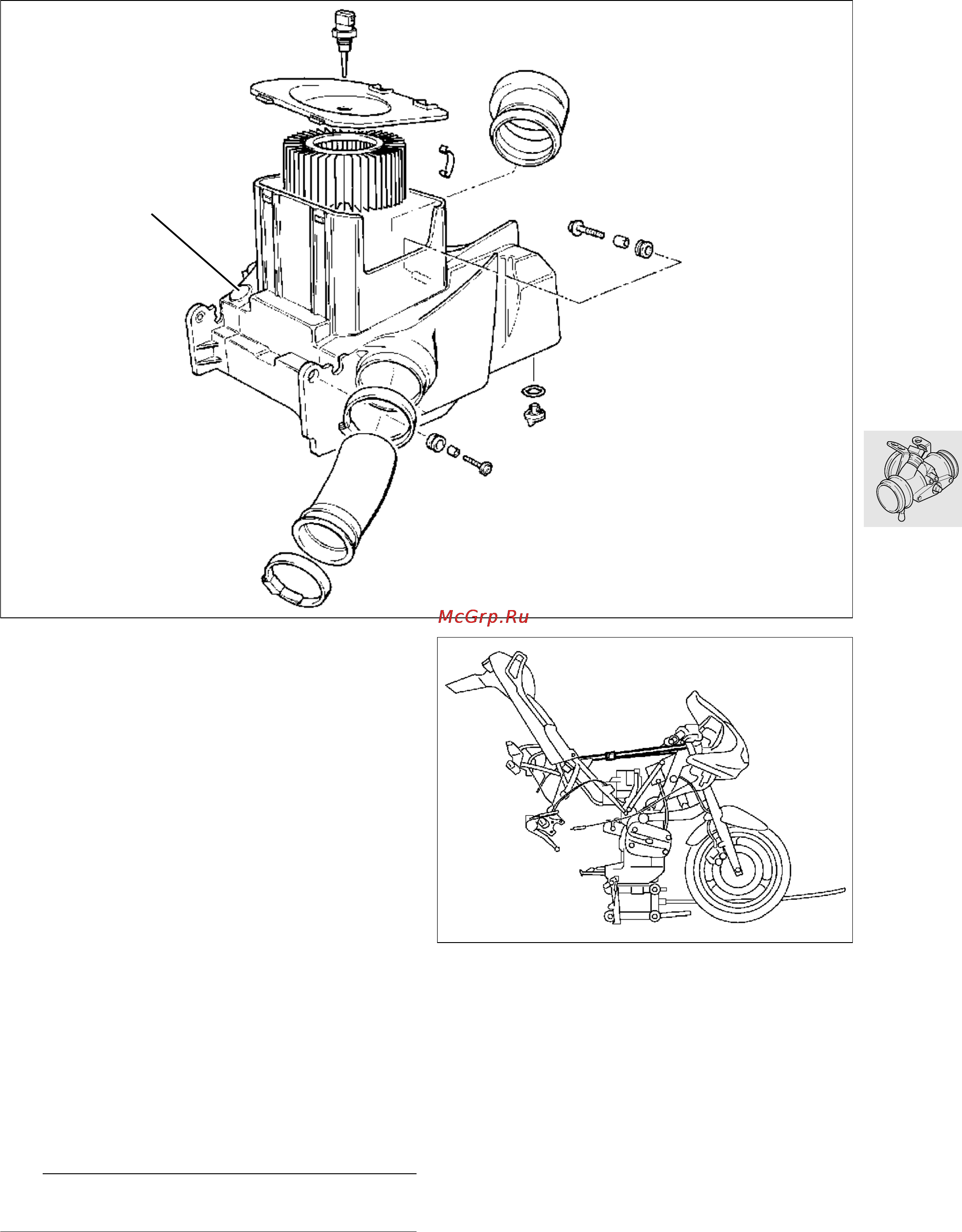

Removing and installing air cleaner
•
Remove dualseat.
•
[RS/GS/RT] Remove side sections of fairing.
•
[R] Remove the tank cover.
•
Remove fuel tank.
•
Remove plug from air temperature sensor.
•
Remove air cleaner cover.
•
Remove air intake pipe.
•
Remove brake fluid reservoir from holder.
•
Remove rear brake pipe from holder.
•
Disconnect plug for brake light switch and
detach lead.
•
Remove front/rear air cleaner box.
•
Remove cable connector/wiring harness from air
cleaner box.
•
Separate connector between neutral switch and
side stand switch and detach lead.
•
Unfasten intake pipe from throttle body.
•
Motorcycles with throttle-cable divider: disen-
gage throttle cables.
•
Remove rear muffler (silencer).
•
[ABS] Detach brake caliper.
•
[ABS]/[GS/R/RT] Detach ABS sensor.
•
Remove rear wheel.
•
Remove suspension strut.
e Caution:
Place support under rear wheel drive.
•
Unfasten screw connection on rear frame/only
loosen mount at front of struts.
•
Tilt rear frame upwards and secure with strap.
•
Detach return pipe from oil trap at air cleaner box
(1).
•
Remove air cleaner box.
•
Install in the reverse order of work.
1
RS130090
RS230310
