13.8

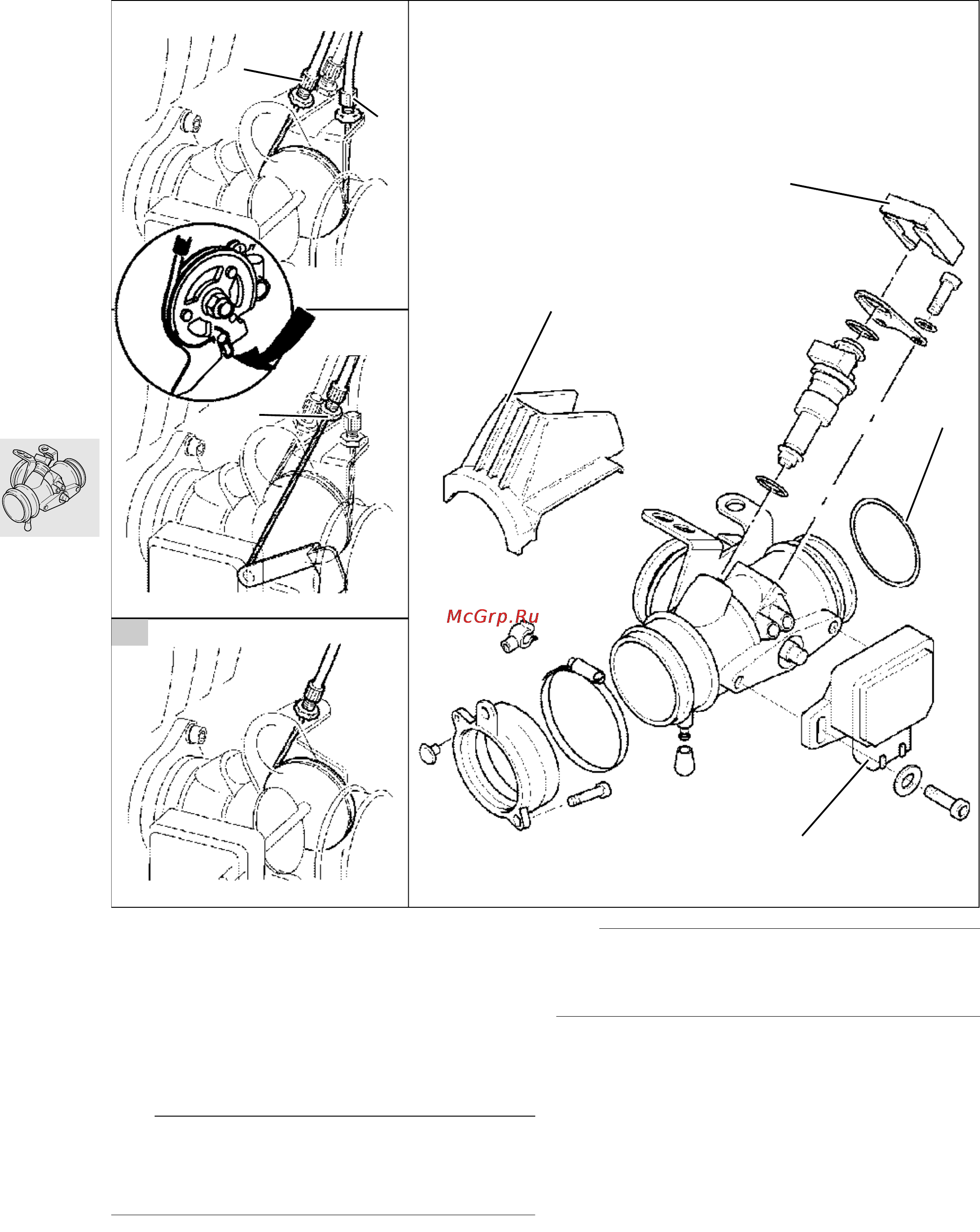

Removing and installing throttle
stub pipe
•
Remove cover (1).
•
Press in the spring catch on the multi-pin plug at
the throttle position sensor (2) and pull off the
plug.
L Note:
Do not remove the throttle position sensor unless it
has to be renewed (basic adjustment
necessary— see Motronic diagnosis instructions).
•
Unfasten retainer (3) for fuel pipe and pull off the
pipe.
•
Slacken off hose clips.
•
Slide intake connection into air cleaner box and
remove throttle body.
e Caution:
Make sure that the O-ring (4) at the throttle stub pipe
is in good condition
•
Disconnect throttle cable (5) from the right, then
from the left, throttle body.
•
Motorcycle with throttle-cable divider.
a Figure (A)
•
Disconnect cable (6) for choke.
•
Install in the reverse order of work
Adjusting choke, idle speed and synchronization
a See Group 00
A
1
3
4
2
5
5
6
RS130100
