BMW R850 1100GS (2000) [283/464] Installing input bevel pinion
![BMW R850 1100GS (2000) [283/464] Installing input bevel pinion](/views2/1121034/page283/bg11b.png)
33.14

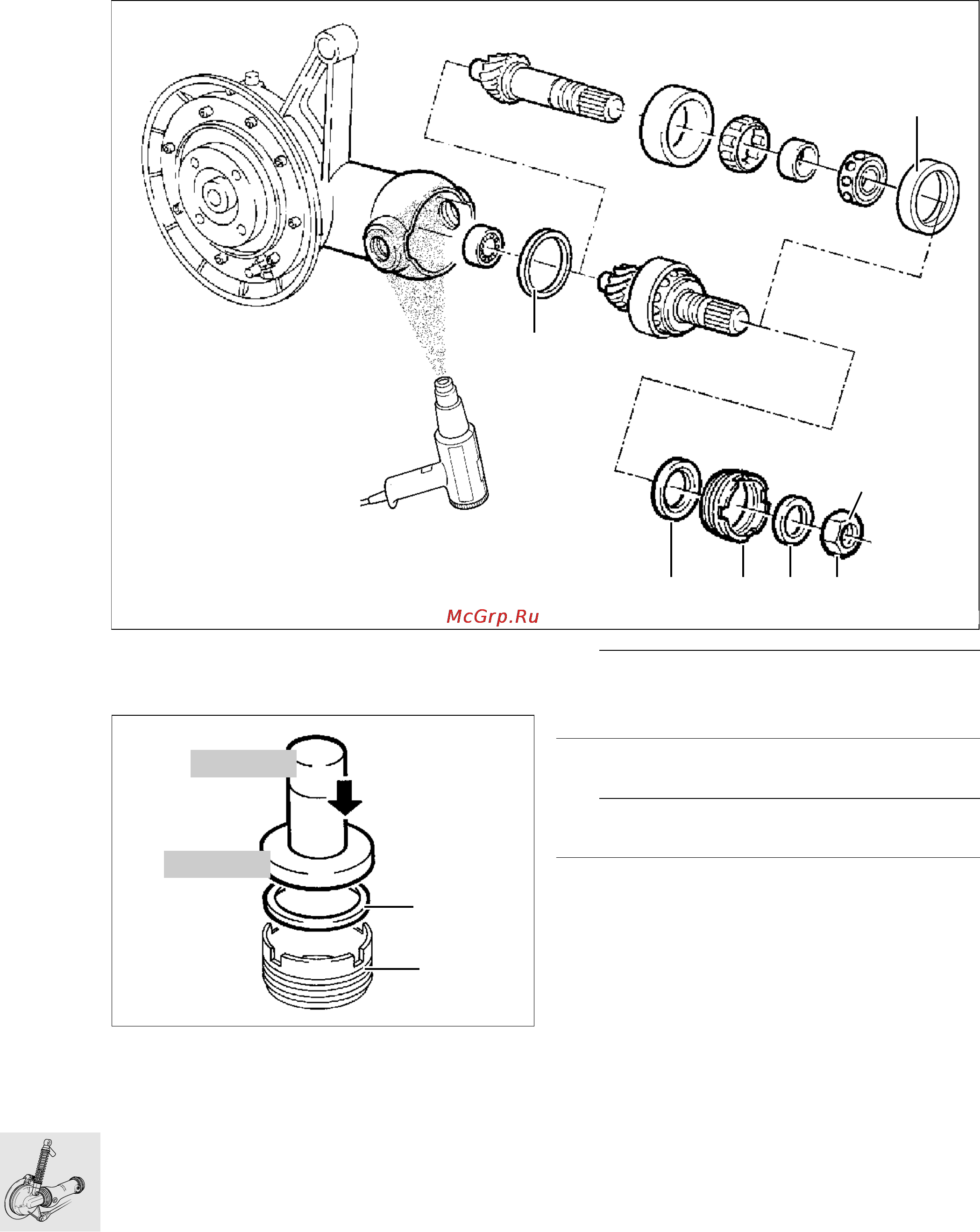

Installing input bevel pinion
•
Drive sealing ring (13) into threaded ring (5) with
drift, BMW No. 33 1 760, and handle,
BMW No.005550.
•
Heat the housing to 120 °C.
•
Install input bevel pinion together with spacer
disc (8).
•
Insert outer race (7).
•
Coat threaded ring (5) with Hylomar SQ 32 M.
•
Tighten threaded ring with pin wrench,
BMW No. 33 1 700.
•
Install thrust ring (4).
L Note:
Ensure that lip of shaft seal is perfectly
aligned on thrust ring.
•
Tighten hex nut (3), using Loctite 273.
e Caution:
Nut must not damage shaft sealing ring.
X Tightening torque:
Threaded ring
(thread cleaned + Hylomar SQ 32 M) ........ 118 Nm
Nut for input bevel pinion
(thread cleaned + Loctite 273).................... 200 Nm
7
8
13 5 4
3
v
j
100
273
LT330080
00 5 500
33 1 760
13
5
LT330090
