BMW R850 1100GS (2000) [251/464] Dismantling telescopic fork
![BMW R850 1100GS (2000) [251/464] Dismantling telescopic fork](/views2/1121034/page251/bgfb.png)
31.13
Dismantling/reassembling
telescopic fork

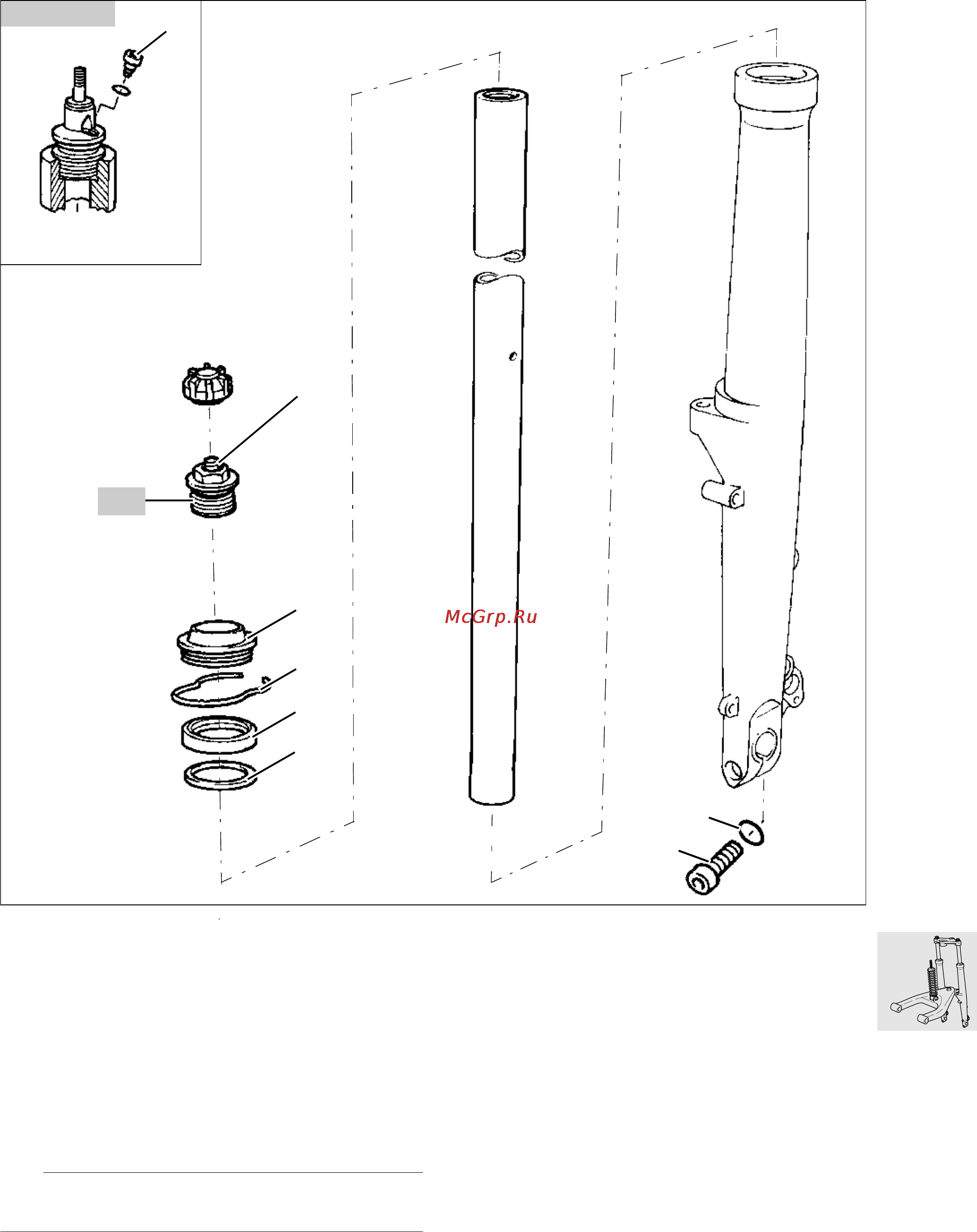

Dismantling telescopic fork
•
Remove bleed screw (1).
•
Remove drain plug (2)/drain oil.
•
Remove fixed tube.
•
Remove dust cover (3)/retaining ring (4).
•
Lever out shaft seal (5)
e Caution:
Do not damage fork slider tube.
•
Remove washer (6).
1
2
3
4
5
6
7
GS/R/RT
RS
1
GS310050
