33.15
Removing and installing taper roller
bearing in rear wheel drive
•

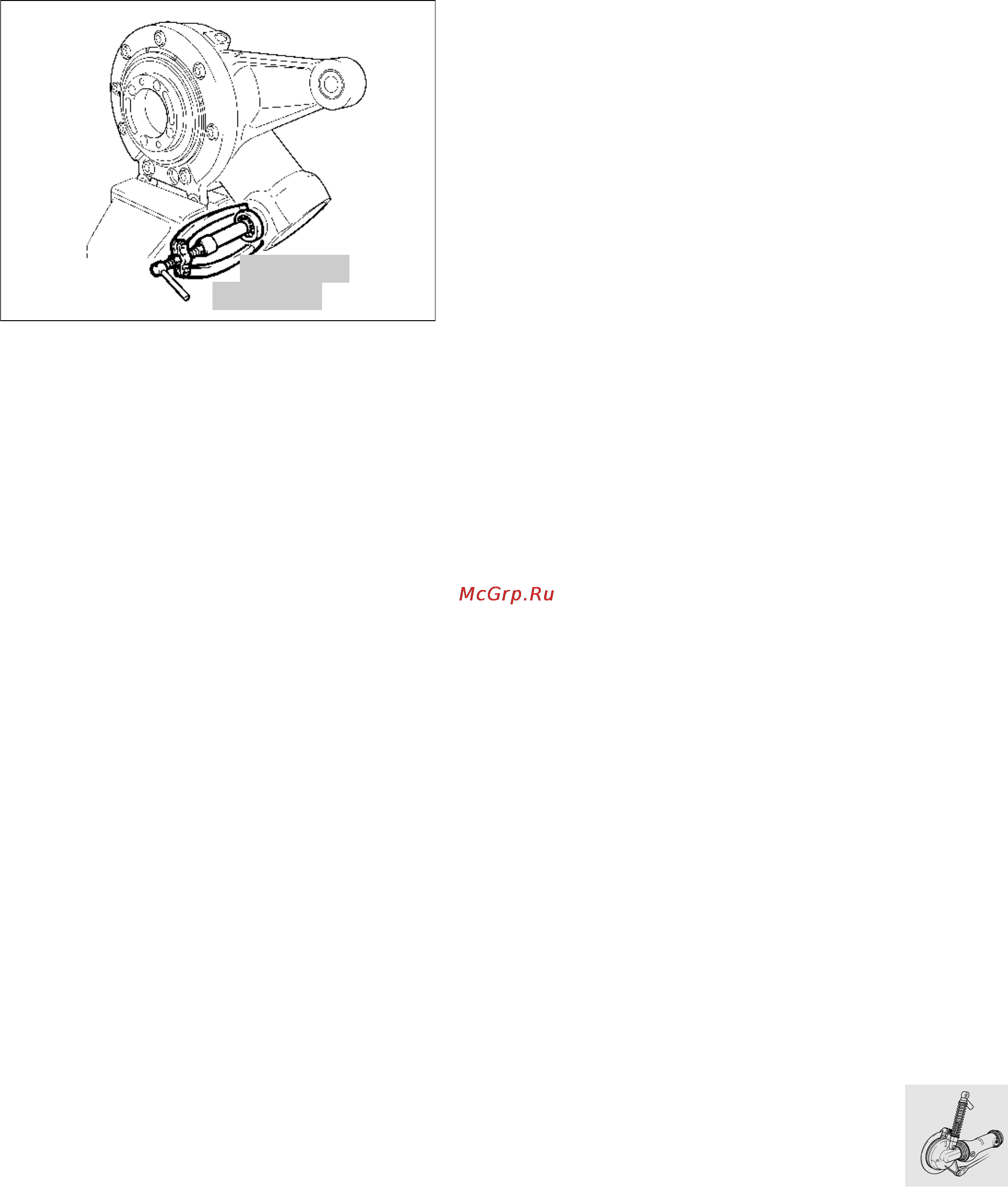

Pull out needle roller bearing using counter-
support 22/1, BMW No. 00 8 572, and internal
puller 21/4, BMW No. 00 8 573.
•
Heat neck of housing to 120 °C.
•
Press in needle roller bearing with inner race on
drift, BMW No. 36 3 700.
00 8 573
00 8 572
RT330090
