00.22
Key to maintenance intervals
– Inspection at 1000 km (600 miles) I
– BMW Service II
– BMW Inspection III
– Annual Service IV

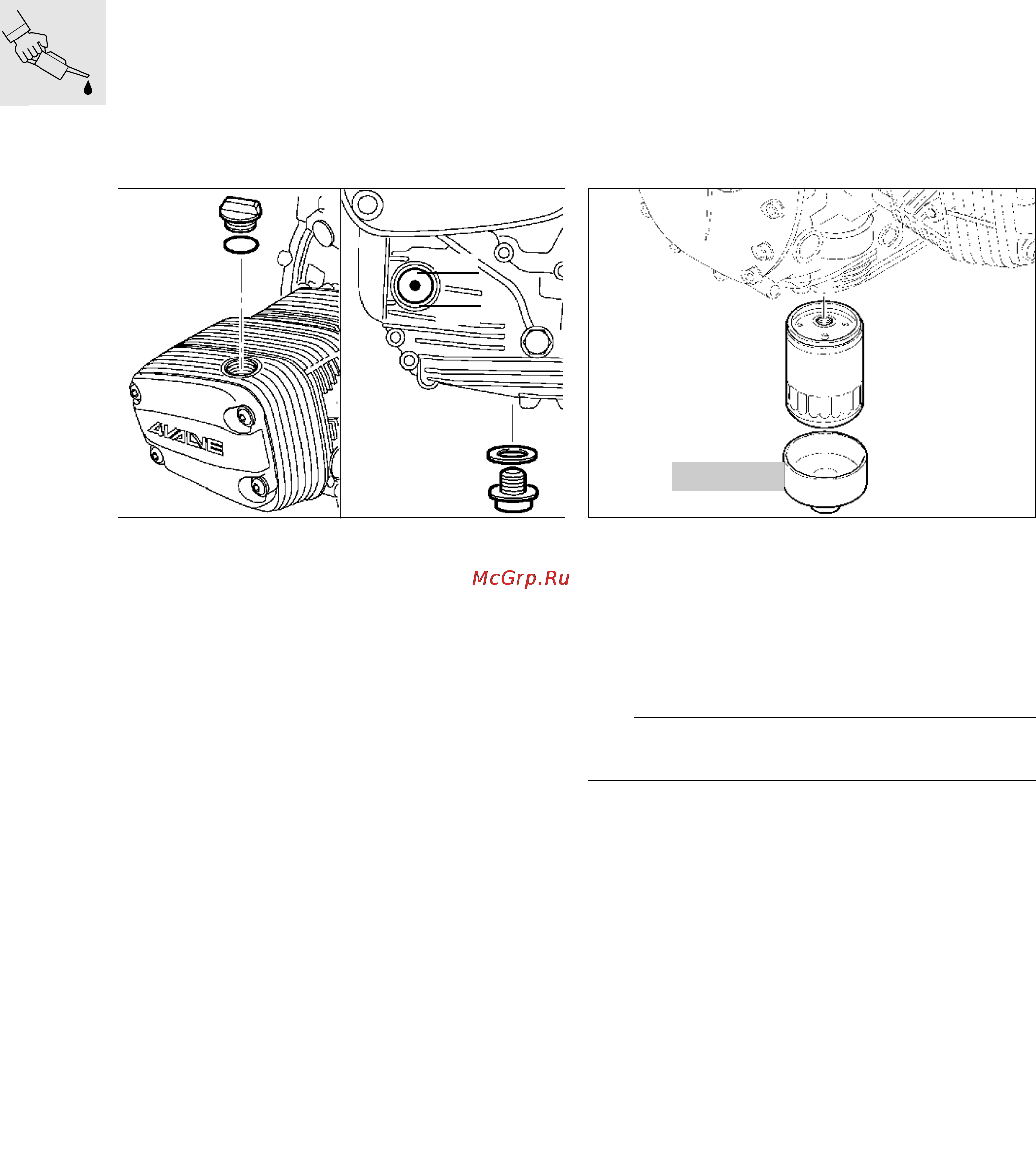

Change engine oil, renew oil filter
element
(Inspection I, II, III, IV)
•
Remove screw plug.
•
Unscrew oil drain plug and drain off oil.
•
Fit new seal and screw in drain plug.
•
Using oil filter wrench, BMW No. 11 4 650,
unscrew and remove the oil filter element.
•
Coat sealing ring on new oil filter element with oil
and screw in.
•
Top up oil/seal off.
•
Do not check oil level until at least 10 minutes af-
ter test run/test ride.
e Caution:
Never add engine oil above the MAX mark.
X Tightening torque:
Oil filter......................................................... 11 Nm
Oil drain plug................................................ 32 Nm
Fill quantity for engine:
- with oil filter change .............3.75 l (6.6 Imp. pints)
- without oil filter change ........3.50 l (6.2 Imp. pints)
Oil volume between
MIN and MAX marks ............0.50 l (0.88 Imp. pints)
Engine oil grade:
Brand-name HD oil for four-stroke spark-ignition en-
gine, API classifications SE,SF,SG; combination
with CC or CD specification.
Max
Min
RS000180
11 4 650
RS110950
