00.38
Checking/adjusting throttle syn-
chronisation and CO emission value
(Inspection I, II, III, IV)
•

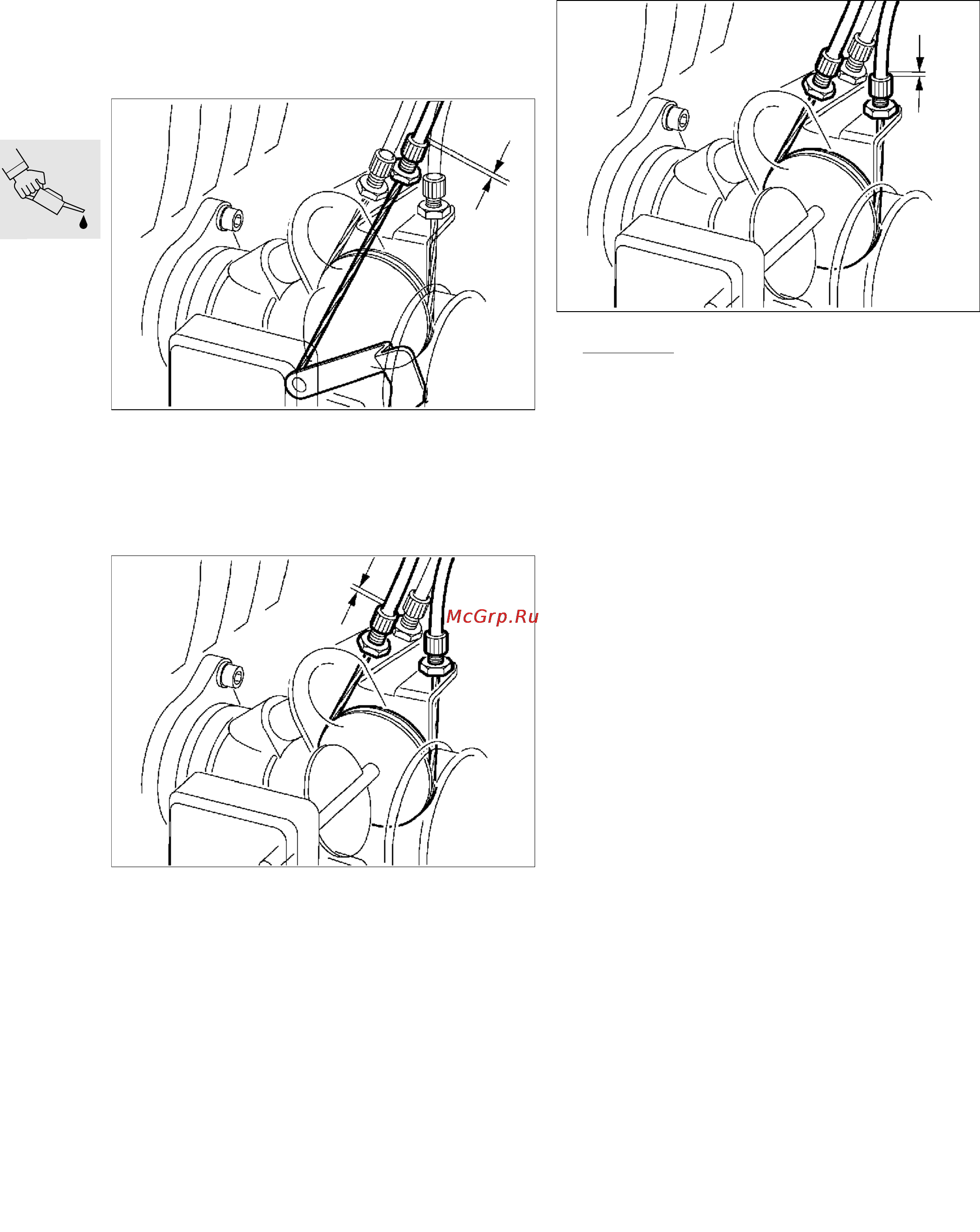

[RT] Remove left side section of fairing.
•
Adjust wire cable for increased idle speed
(choke).
Choke cable play:.............................< 1 mm (0.039 in)
•
Adjust the wire cable from the throttle twistgrip
when the handlebar is on full right lock.
Throttle cable play:.......... app. 0.5 mm (0.0197 in)
•
Pre-adjust the wire connecting cable between
the throttle stub pipes with the left or right ad-
justing screw .
•
Adjust the connecting cable to zero play.
RS130020
RS130030
RS130040
