46.31

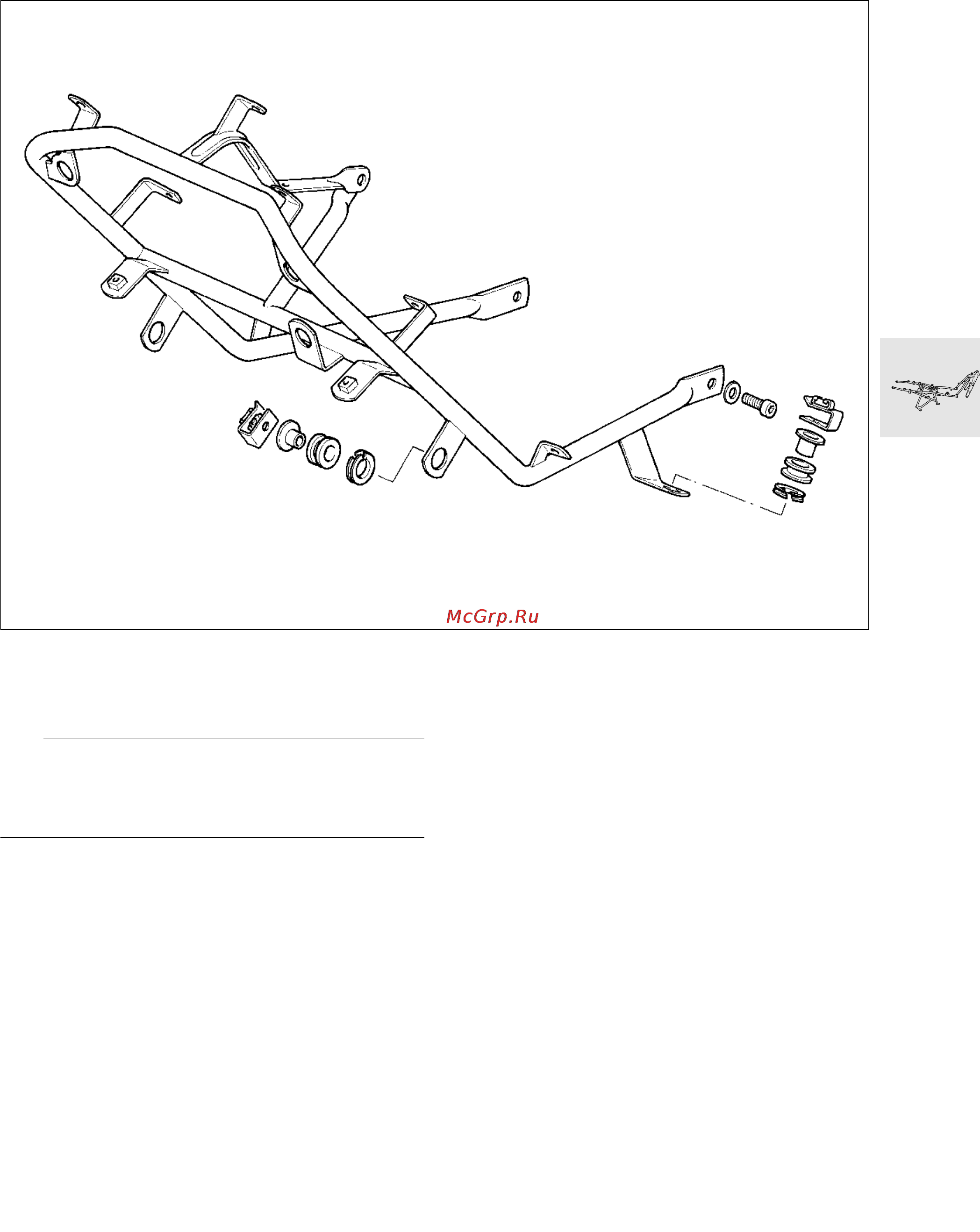

[RS] Removing and installing fairing
holder
e Caution:
Switch off ignition.
Disconnect ground (earth) lead from battery.
Insulate ground (earth) lead.
•
Remove side sections of fairing.
•
Remove inner fairing panel.
•
Turn adjusting shaft counterclockwise to release
windshield adjuster.
•
Detach instrument cluster.
•
Separate plug connectors for headlights and in-
dicators.
•
Remove top section of fairing with headlight.
•
Detach connector strip and wiring harness from
fairing holder.
•
Detach oil cooler mount.
•
Install in the reverse order of work.
X Tightening torque:
Fairing support bracket to frame ................. 20 Nm
RS460120
